Запчасти Case 590SN (35.359.390) - VAR - 747776, 747864 - AUXILIARY CONTROL VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

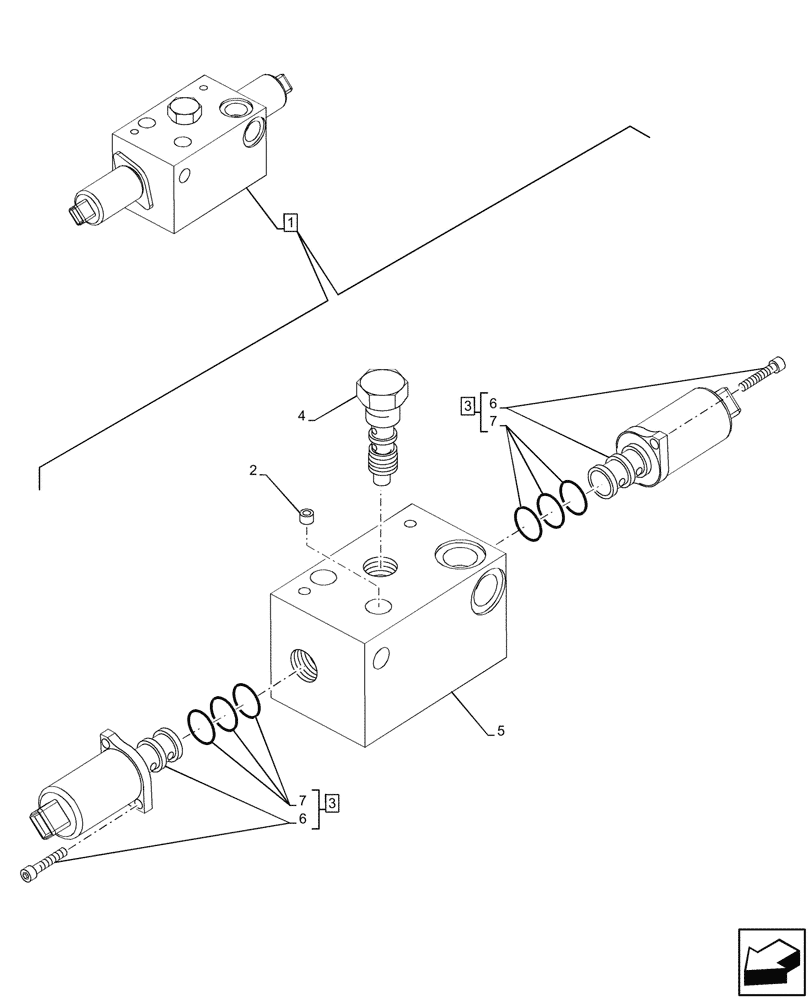

Схема запчастей Case 590SN - (35.359.390) - VAR - 747776, 747864 - AUXILIARY CONTROL VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS
2
5
7
6
7
4
3
1
6
3

Артикул

Название

Примечание

Количество

1

47765053

CONTROL VALVE

ASSY, Clam Bucket, Incl 2 - 5

1шт.

2

87311363

ORIFICE,1.8mm ID

1шт.

3

85827993

SOLENOID VALVE

ASSY, Pressure Control, Incl 6, 7

2шт.

4

47761897

VALVE, PRESSURE CONT

Pressure Reducing, Clam Valve

1шт.

5

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

Solenoid Valve, Incl in 3

2шт.

7

85828000

SEAL KIT

Pilot Controls, Pressure Control Valve

1шт.

Выбрано товаров: 7
