Запчасти Case 590SN (35.359.170) - LOADER, CONTROL VALVE, MECHANICAL, 3-SPOOL, COMPONENTS (35) - HYDRAULIC SYSTEMS

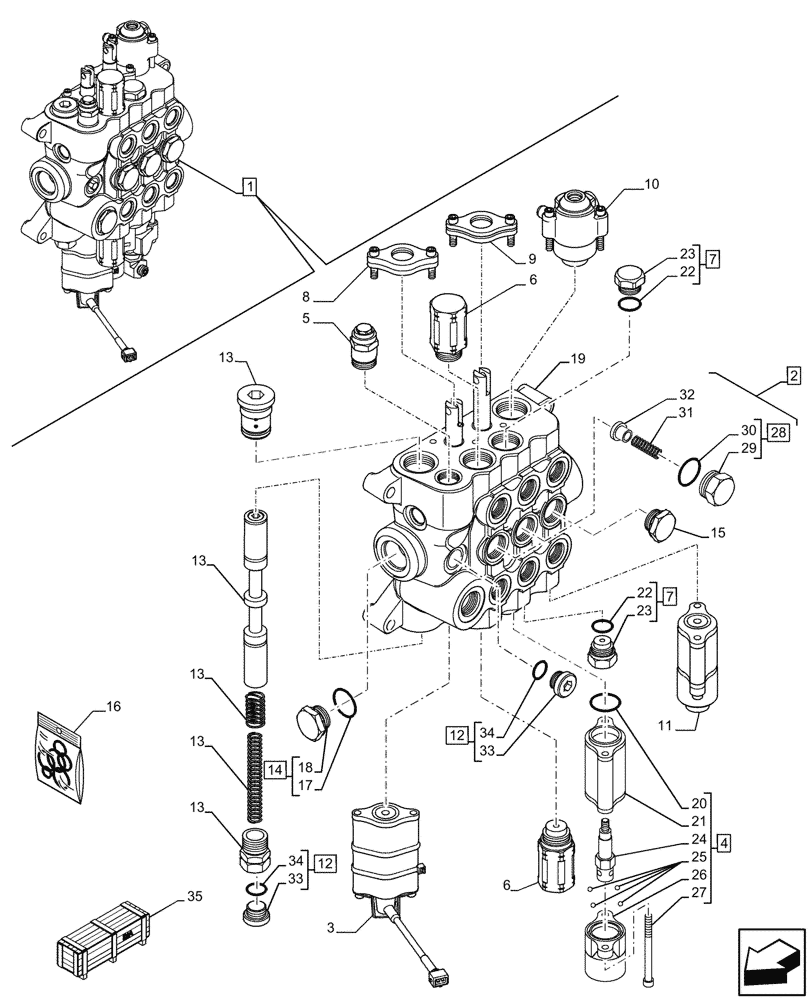

Схема запчастей Case 590SN - (35.359.170) - LOADER, CONTROL VALVE, MECHANICAL, 3-SPOOL, COMPONENTS (35) - HYDRAULIC SYSTEMS
13
26
23
28
6
34
30
24
12
8
33
21
13
31
7
29
1
9
22
34
12
2
6
7
25
13
19
3
5
22
17
13
33
20
35
15
4
10
11
16
14
23
27
18
13
32

Артикул

Название

Примечание

Количество

1

47907465

VALVE

ASSY, Loader, 3-Spool with Priority, Incl 2 - 34

1шт.

2

87426238

VALVE, CHECK

ASSY, Incl 28 - 32

2шт.

3

84296814

KIT

Magnetic Detent Group

1шт.

4

87426227

DETENT

ASSY, Incl 20, 21, 24 - 27

1шт.

5

84296864

VALVE PRESSURE RELIE,7/8" - 14

1шт.

6

84296801

VALVE PRESSURE RELIE,1-1/4" - 12

Loader Dump

2шт.

7

81868381

CHECK VALVE,1-1/16" - 12

ASSY, Anti Void, Incl 22, 23

2шт.

8

84315193

SEAL

Plate

1шт.

9

84327674

KIT

Seal Plate

1шт.

10

87757931

END

1шт.

11

87757932

END

1шт.

12

86625138

PLUG,7/18" - 14

ASSY, Incl 33, 34

1шт.

13

84296863

KIT

Mechanical Priority End Group

1шт.

14

163410

PLUG,1-1/16" - 12 ORB

ASSY, Incl 17, 18

1шт.

15

84328445

CHECK VALVE

Orifice Load

1шт.

16

84296788

SEAL KIT

Mechanical Loader Control Valve Seal

1шт.

17

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

18

NSS

NOT SOLD SEPARAT

Plug, Incl in 14

1шт.

19

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

20

87454547

O-RING

1шт.

21

NSS

NOT SOLD SEPARAT

Endcap, Incl in 4

1шт.

22

87455580

O-RING KIT

Backhoe Control Valve, Anti-Void Check Valve

2шт.

23

NSS

NOT SOLD SEPARAT

Check Valve, Incl in 7

2шт.

24

NSS

NOT SOLD SEPARAT

Detent, Incl in 4

1шт.

25

87310276

BALL BEARING

4шт.

26

NSS

NOT SOLD SEPARAT

Spool Cap, Incl in 4

1шт.

27

87310275

SCREW

2шт.

28

87455581

PLUG,Hex, 1/16" - 12 ORB

ASSY, Incl 29, 30

2шт.

29

NSS

NOT SOLD SEPARAT

Plug, Incl in 28

2шт.

30

87455975

O-RING

2шт.

31

87455582

SPRING

2шт.

32

NSS

NOT SOLD SEPARAT

Load Check, Incl in 2

2шт.

33

NSS

NOT SOLD SEPARAT

Plug, Incl in 12

1шт.

34

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

35

47955728

CONSTRUCTION DIA

Loader Valve 3 Spool, Incl 1 - 34

1шт.

Valid for 580SN (Livery), 580SN WT (Livery), 590SN (Livery) Models Only, W/ Mechanical Control and Standard Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

35

47955736

CONSTRUCTION DIA

Loader Valve 3 Spool, Incl 1 - 34

1шт.

Valid for 580SN (Livery), 580SN WT (Livery), 590SN (Livery) Models Only, W/ Mechanical Control and Powershift Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 40
