Запчасти Case 590SN (35.359.150) - LOADER, CONTROL VALVE, PILOT CONTROLS, INLET SECTION (35) - HYDRAULIC SYSTEMS

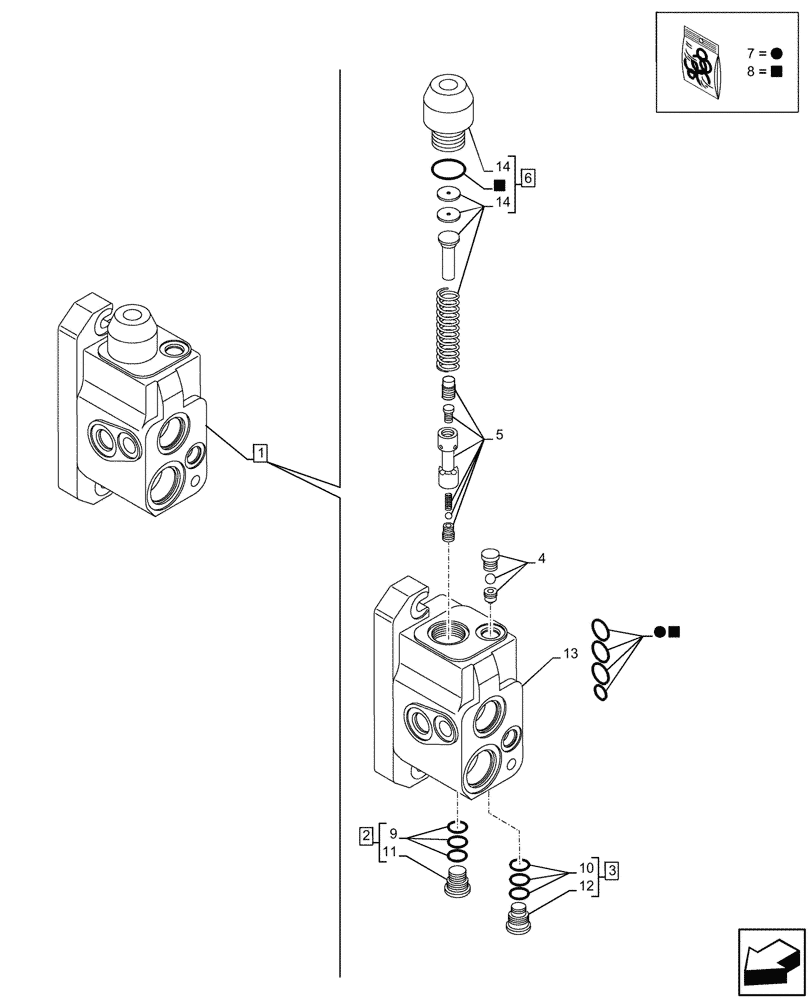

Схема запчастей Case 590SN - (35.359.150) - LOADER, CONTROL VALVE, PILOT CONTROLS, INLET SECTION (35) - HYDRAULIC SYSTEMS
2
4
3
14
8
11
5
6
8
7
14
13
7
9
8
1
12
10

Артикул

Название

Примечание

Количество

1

87751123

HYD VALVE SECTION

ASSY, Inlet, Incl 2 - 14 & O-Ring

1шт.

2

85820187

PLUG

ASSY, Incl 9, 11

1шт.

3

87752047

PLUG

ASSY, Incl 10, 12

1шт.

4

87752049

REPAIR KIT

Shuttle Valve

1шт.

5

87752050

REPAIR KIT

For CD Spool

1шт.

6

87572323

KIT

ASSY, Plugging, Incl 14 & O-Ring

1шт.

7

85825473

SEAL KIT

Loader Valve Section

1шт.

8

85825477

SEAL KIT

Backhoe Control Valve, Inlet Sections

1шт.

9

85821235

SEAL KIT

Loader Control Valve, Inlet Sections

1шт.

10

85821236

SEAL KIT

Loader Control Valve, Inlet Sections

1шт.

11

NSS

NOT SOLD SEPARAT

Plug, Incl in 2

1шт.

12

NSS

NOT SOLD SEPARAT

Plug, Incl in 3

1шт.

13

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

14

NSS

NOT SOLD SEPARAT

Kit, Incl in 6

1шт.

Выбрано товаров: 14
