Запчасти Case 590SN (35.357.030) - VAR - 423078, 747669 - BACKHOE ARM, PILOT CONTROLS, BOOT (35) - HYDRAULIC SYSTEMS

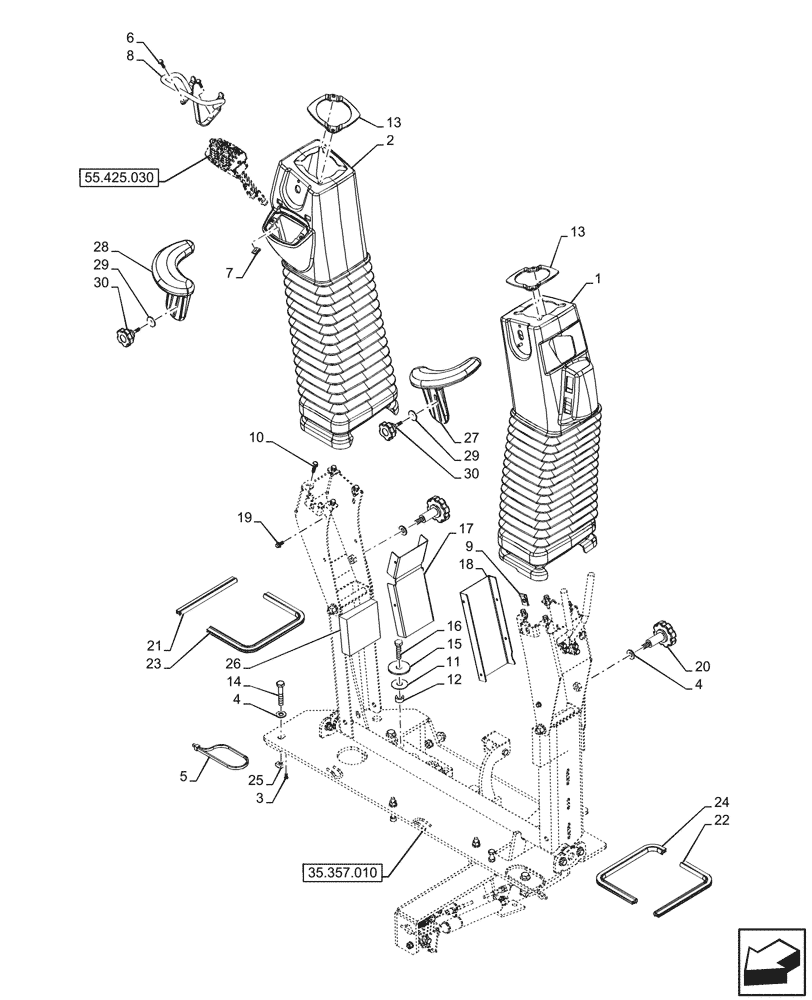

Схема запчастей Case 590SN - (35.357.030) - VAR - 423078, 747669 - BACKHOE ARM, PILOT CONTROLS, BOOT (35) - HYDRAULIC SYSTEMS
35.357.010
16
27
5
9
23
25
3
15
24
11
13
18
14
20
29
1
13
4
30
6
2
28
4
17
26
29
19
21
10
22
30
12
7
55.425.030
8

Артикул

Название

Примечание

Количество

1

87309924

BOOT

Pilot Control Tower Cover, LH

1шт.

2

87309923

BOOT

Pilot Control Tower Cover, RH

1шт.

3

336371A1

PIN,4.88mm OD x 14.23mm L

2шт.

4

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

5

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.

6

87310085

SELF-TAP SCREW,HWH, M10 x 25.4mm

2шт.

7

87565604

NUT,0.250" ID

2шт.

8

87307656

GUARD

1шт.

9

833-40406

NUT,M6, U

2шт.

10

87608777

BOLT,Hex, M6 x 30, Cl. 10.9

8шт.

11

D148962

WASHER,12.7mm ID x 38.1mm OD x 1.19mm Thk

1шт.

12

87440381

SPACER,11.1mm ID x 19.05mm OD x 9.5mm Thk

1шт.

13

87435372

RETAINING PLATE,83mm ID, 103mm L

Boot Mounting

2шт.

14

814-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8

1шт.

15

496-81018

WASHER,0.521" ID x 2" OD x 0.108 Thk, ZND

1шт.

16

87450914

BOLT,Hex, M10 x 40, Cl. 8.8

2шт.

17

87431301

SHIELD

1шт.

18

87431300

SHIELD

1шт.

19

781-24613

SELF-TAP SCREW,Hex Flg, M6 x 1 x 13mm

8шт.

20

87437688

KNOB

Lateral Adjustment

2шт.

21

87433008

RUBBER SEAL,183mm L

Quick Edge LH Outer

1шт.

22

87433007

RUBBER SEAL,275mm L

Quick Edge RH Outer

1шт.

23

87433006

RUBBER SEAL,428mm L

Quick Edge LH Inner

1шт.

24

87433005

RUBBER SEAL,335mm L

Quick Edge RH Inner

1шт.

25

309096A1

SQUARE NUT,Square, M10 x 1.5, LH Thd, Cl 5A

2шт.

26

87425696

FOAM,Pad

2шт.

27

87437366

ARMREST

Wrist RH

1шт.

28

87437369

ARMREST

Wrist LH

1шт.

29

87310186

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

30

87437689

KNOB

Wrist Armrest Adjustment

2шт.

Выбрано товаров: 30
