Запчасти Case 590SN (35.355.030) - VAR - 742369 - BACKHOE ARM, MECHANICAL, CONTROL, SLEWING/SWING, COVER (35) - HYDRAULIC SYSTEMS

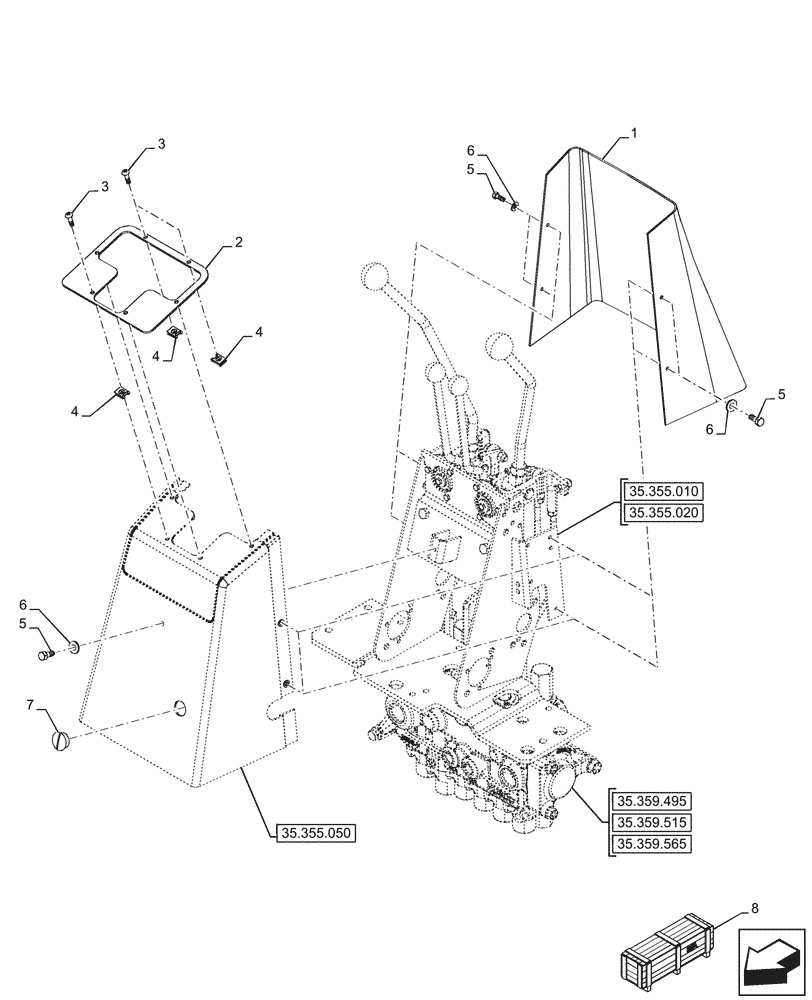

Схема запчастей Case 590SN - (35.355.030) - VAR - 742369 - BACKHOE ARM, MECHANICAL, CONTROL, SLEWING/SWING, COVER (35) - HYDRAULIC SYSTEMS
35.359.495
4
4
3
5
6
8
6
3
4
5
5
6
2
7
35.359.565
1
35.355.050
35.355.020
35.355.010
35.359.515

Артикул

Название

Примечание

Количество

1

47945943

COVER

Rear, Backhoe Console

1шт.

2

136824A1

LARGE PLATE

Boot Retaining 2 Lever

1шт.

3

87310126

SCREW,Phillips Drive, Pan HD, #10 - 24 x 3/4", SST

6шт.

4

131-861

SPRING NUT,Tinn, U, #10-24

6шт.

5

87310156

SELF-TAP SCREW,M6.3 x 1.8 x 16mm, Stainless

5шт.

6

87310139

WASHER,7.14mm ID x 15.88mm OD x 1.65mm Thk

5шт.

7

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

8

47945945

CONSTRUCTION DIA

Conversion Foot Swing to 2 Lever, Incl 1 - 7

1шт.

Valid for All Models, W/ Standard Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

47945946

CONSTRUCTION DIA

Conversion Foot Swing to 2 Lever, Incl 1 - 7

1шт.

Valid for All Models, W/ Extendable Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 13
