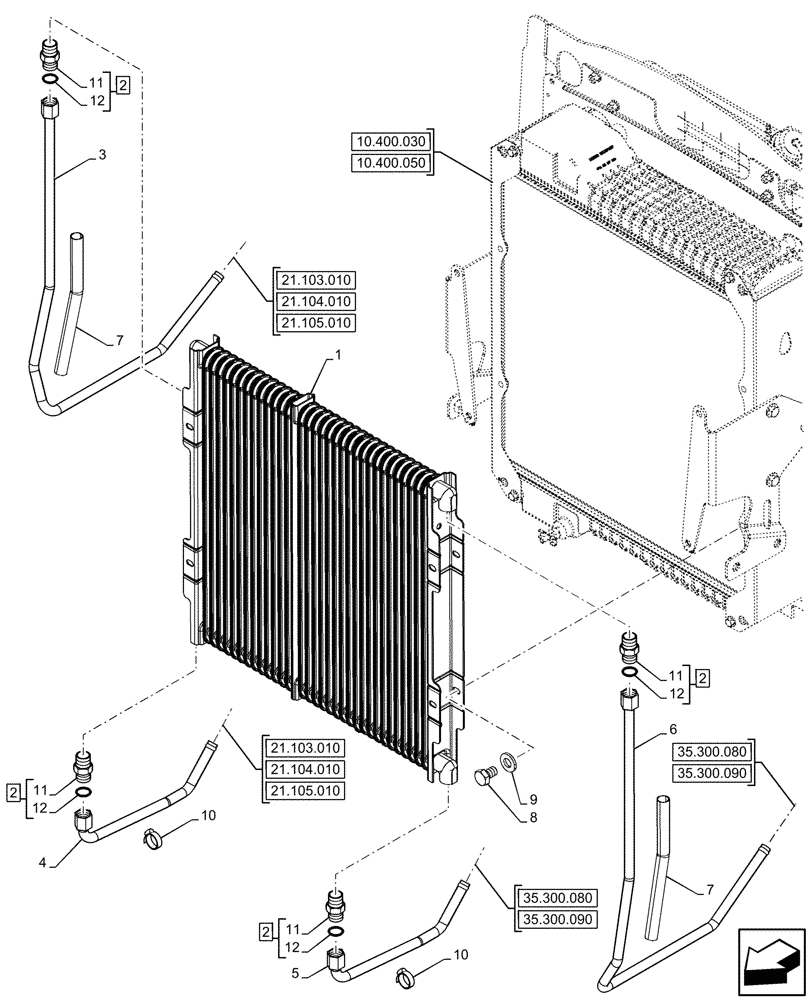

Запчасти Case 590SN (35.300.100) - VAR - 423000, 442082, 747853, 747854, 747855 - OIL COOLER (35) - HYDRAULIC SYSTEMS
21.105.010
8
11
1
7
10
5
6
12
12
2
11
9
10
7
11
4
2
11
2
3
12
12
2
35.300.090
35.300.090
10.400.050
21.104.010
21.104.010
10.400.030
21.103.010
21.103.010
35.300.080
35.300.080
21.105.010
№
Артикул
Название
Примечание
Количество
1
87441876
OIL COOLER
1шт.
2
218-5062
HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring
ASSY, Incl 11, 12
4шт.
3
47428709
TUBE
Upper Cooler, LH
1шт.
4
47428710
TUBE
Upper Cooler, RH
1шт.
5
47428711
TUBE
Lower Cooler, LH
1шт.
6
47428712
TUBE
Lower Cooler, RH
1шт.
7
87311219
HOSE PROTECTION,16.80 mm ID x 250.00 mm
2шт.
8
614-8012
BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd
4шт.
9
87655042
SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk
4шт.
10
214-1412
HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm
2шт.
11
NSS
NOT SOLD SEPARAT
Connector, Incl in 2
4шт.
12
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
4шт.
Выбрано товаров: 12
