(35.106.350) - VARIABLE DISPLACEMENT HYDRAULIC PUMP (W/ POWER LIFT, W/ DUAL BATTERIES)

Запчасти Case 590SN (35.106.350) - VARIABLE DISPLACEMENT HYDRAULIC PUMP (W/ POWER LIFT, W/ DUAL BATTERIES) (35) - HYDRAULIC SYSTEMS

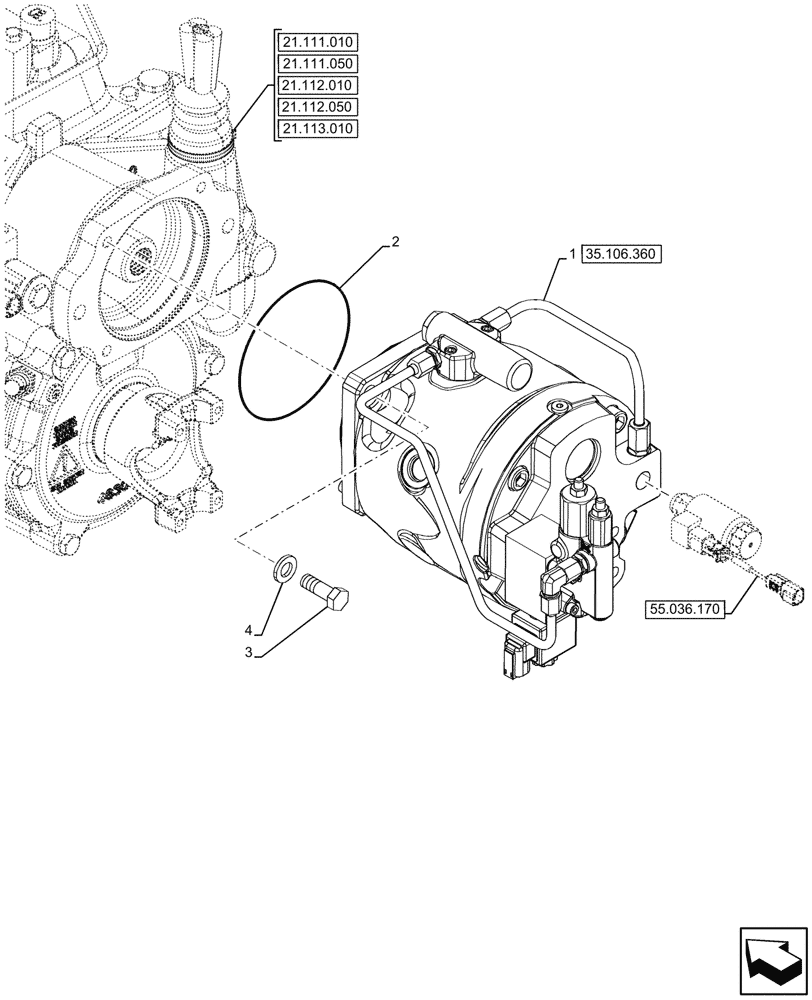

Схема запчастей Case 590SN - (35.106.350) - VARIABLE DISPLACEMENT HYDRAULIC PUMP (W/ POWER LIFT, W/ DUAL BATTERIES) (35) - HYDRAULIC SYSTEMS
21.111.010
4
1
3
2
21.111.050
55.036.170
35.106.360
21.112.050
21.112.010
21.113.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84545280

HYDRAULIC PUMP,74 CC

ASSY

1шт.

74cc, Load Sense (LS)

1шт.

2

175156

O-RING,0.103" Thk x 4.987" ID, -159, Cl 5, 75 Duro

1шт.

3

514-832

BOLT,Hex, M12 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.

4

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

4шт.

Выбрано товаров: 5
