Запчасти Case 590SN (35.106.140) - LOADER, HYDRAULIC PUMP, CONTROL VALVE, PILOT CONTROLS, 2-SPOOL, LINE (35) - HYDRAULIC SYSTEMS

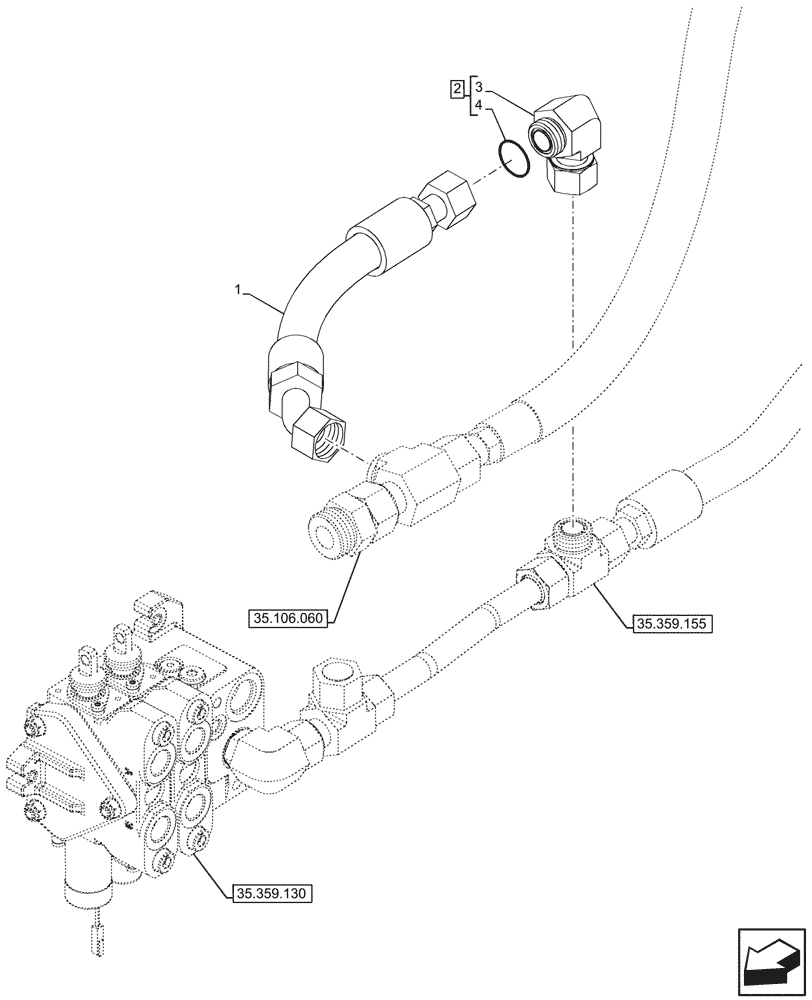

Схема запчастей Case 590SN - (35.106.140) - LOADER, HYDRAULIC PUMP, CONTROL VALVE, PILOT CONTROLS, 2-SPOOL, LINE (35) - HYDRAULIC SYSTEMS
35.106.060
1
4
3
2
35.359.155
35.359.130

Артикул

Название

Примечание

Количество

1

47955919

HYDRAULIC HOSE,25mm ID, 450mm L, SAE100R12

Pressure, Pump to Loader Valve

1шт.

2

84989413

ELBOW,90 Degree, 1 7/16"-12 ORFS x 1 7/16"-12 Fem Sw

ASSY, Incl 3, 4

1шт.

3

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

4

NSS

NOT SOLD SEPARAT

Union Elbow, Incl in 2

1шт.

Выбрано товаров: 4
