(33.202.080) - REAR AXLE, SHAFT, BRAKES

Запчасти Case 590SN (33.202.080) - REAR AXLE, SHAFT, BRAKES (33) - BRAKES & CONTROLS

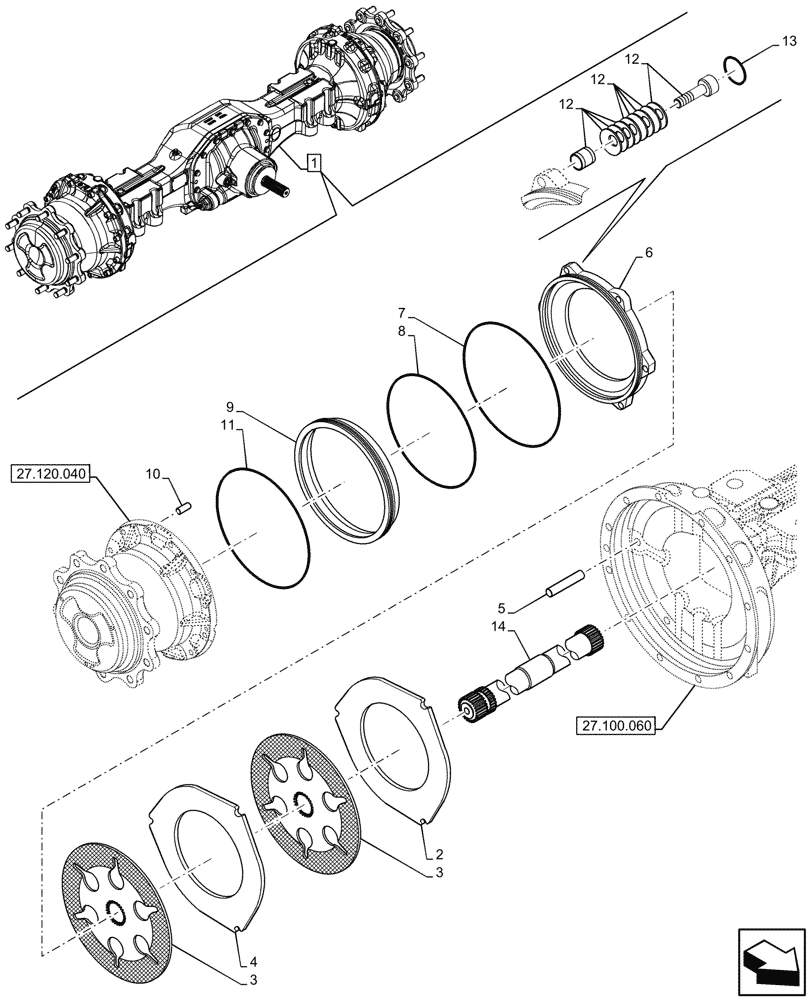

Схема запчастей Case 590SN - (33.202.080) - REAR AXLE, SHAFT, BRAKES (33) - BRAKES & CONTROLS
27.120.040
7
11
3
3
1
9
8
2
5
6
12
14
4
12
12
13
10
27.100.060
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47484457

REAR AXLE

28.50 Drive 16 to 1 CW, ASSY, Incl 2 - 14

1шт.

See also Rear Axle Components in Figures 27.100.060, 27.106.070, 27.106.080, 27.106.090, 27.120.040

1шт.

2

87708433

BRAKE PLATE,5mm Thk

2шт.

3

87708434

BRAKE PLATE

4шт.

4

87708435

BRAKE PLATE,8mm Thk

2шт.

5

139294A1

GUIDE

6шт.

6

87708436

BRAKE CYLINDER

Piston

2шт.

7

87708438

O-RING

2шт.

8

371144A1

O-RING

Piston External

2шт.

9

87708440

PISTON

Brake

2шт.

10

D142890

DOWEL

2шт.

11

371145A1

O-RING

Piston Carrier

2шт.

12

87708441

BRAKE ADJUSTER,0.6mm

Self Adjust KIT 0.6mm

6шт.

13

87708442

CIRCLIP

6шт.

14

87708966

SHAFT,750T / 15T

2шт.
