Запчасти Case 590SN (27.120.040) - REAR AXLE, FINAL DRIVE, PLANETARY GEAR (27) - REAR AXLE SYSTEM

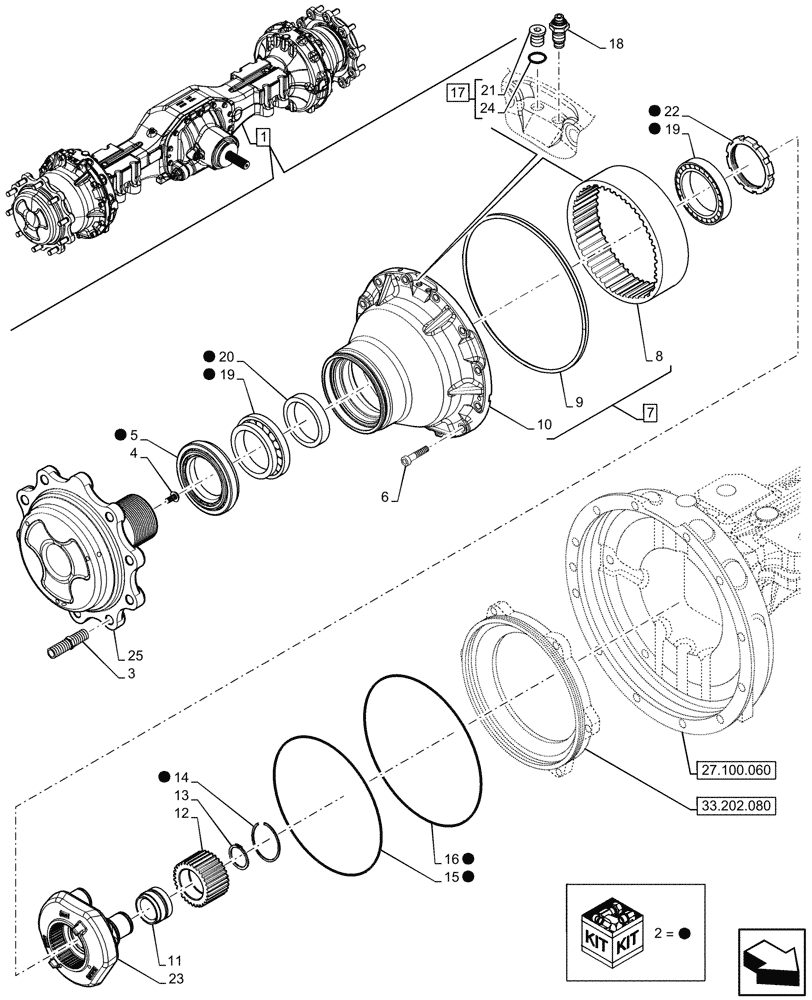

Схема запчастей Case 590SN - (27.120.040) - REAR AXLE, FINAL DRIVE, PLANETARY GEAR (27) - REAR AXLE SYSTEM
27.100.060
11
20
4
15
18
23
9
1
22
8
3
14
19
1
1
6
1
7
1
10
2
19
13
12
24
25
21
5
1
1
17
1
16
1
33.202.080

Артикул

Название

Примечание

Количество

1

47484457

REAR AXLE

28.50 Drive 16 to 1 CW, ASSY, Incl 2 - 25

1шт.

See also Rear Axle Components in Figures 27.100.060, 27.106.070, 27.106.080, 27.106.090, 33.202.080

1шт.

2

47579370

KIT

ASSY, Ring Nut, Incl 5, 14 - 16, 19, 20, 22

2шт.

3

85808260

STUD

1шт.

4

K395093

HEADED PIN,12mm OD x 15mm L

Headed Pin

2шт.

5

87538281

SHAFT SEAL

2шт.

6

403955A1

BOLT

24шт.

7

87708969

RING GEAR

ASSY, Incl 8 - 10

2шт.

8

87708467

RING GEAR

2шт.

9

87711038

RING

2шт.

10

NSS

NOT SOLD SEPARAT

Hub, Incl in 7

2шт.

11

87708444

ROLLER BEARING

Roller

6шт.

12

87708967

GEAR,31T

6шт.

13

800-1150

SNAP RING,M50, Ext

6шт.

14

87708453

SNAP RING

2шт.

15

371144A1

O-RING

Piston External

2шт.

16

87708438

O-RING

2шт.

17

9625178

PLUG,9/16" - 18 ORB

ASSY, Incl 21, 24

2шт.

18

E135810

VENTING SCREW

2шт.

19

NSS

NOT SOLD SEPARAT

Tapered Bearing, Incl in 2

2шт.

20

NSS

NOT SOLD SEPARAT

Spacer, Incl in 2

2шт.

21

NSS

NOT SOLD SEPARAT

Plug, Incl in 17

2шт.

22

NSS

NOT SOLD SEPARAT

Ring Nut, Incl in 2

2шт.

23

87708452

PLANET CARRIER

2шт.

24

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

25

87708972

FLANGE

2шт.

Выбрано товаров: 26
