Запчасти Case 590SN (25.400.100) - FRONT AXLE, WHEEL HUB, 2WD (25) - FRONT AXLE SYSTEM

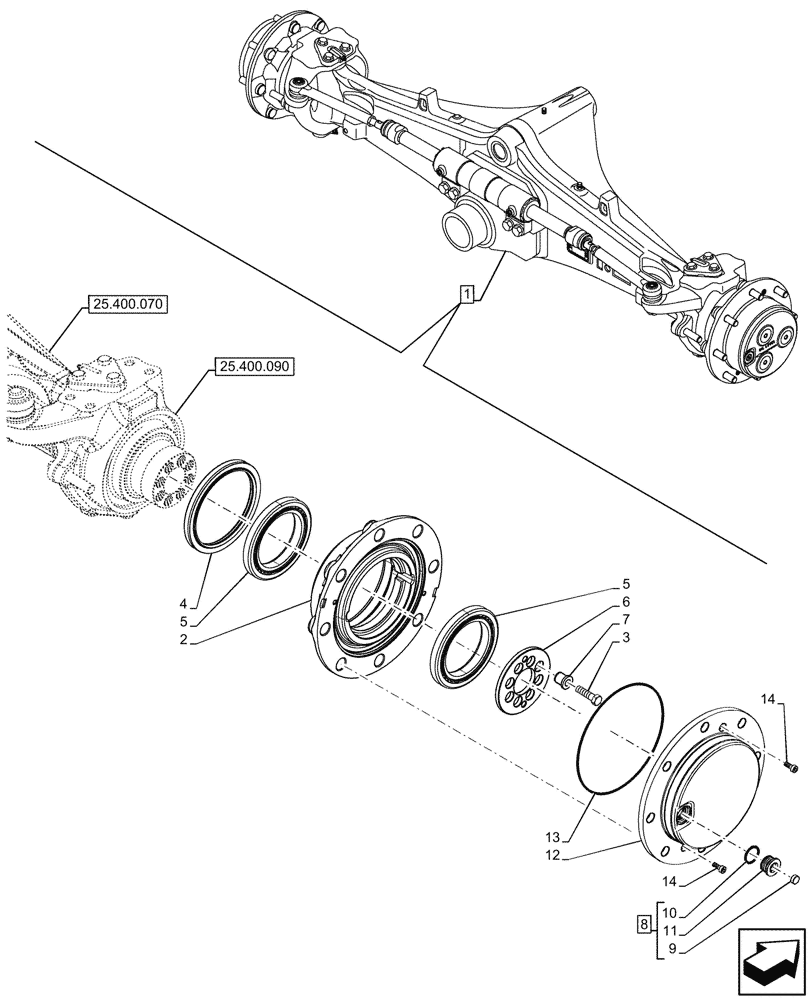

Схема запчастей Case 590SN - (25.400.100) - FRONT AXLE, WHEEL HUB, 2WD (25) - FRONT AXLE SYSTEM
25.400.070
11
5
7
12
5
13
14
1
4
6
3
2
10
9
14
8
25.400.090

Артикул

Название

Примечание

Количество

1

47559846

FRONT AXLE

PS1400 ACP, Grey, ASSY, Incl 2 - 14

1шт.

See also Front Axle Components in Figures 25.400.070, 25.400.080, 25.400.090, 41.106.020, 41.216.020

1шт.

2

47570583

HUB

Drive

1шт.

3

87015539

BOLT,Hex, M12 x 45mm, Cl 10.9

8шт.

4

87349641

OIL SEAL,150mm ID x 180mm OD x 14.5/16mm Thk

1шт.

5

47724311

TAPERED BEARING,109.5mm ID x 158.7mm OD x 23mm L

2шт.

6

84211140

FLANGE

1шт.

7

84252637

SLEEVE,12.55mm ID x 20.080mm OD x 25mm Thk

T-Dowel

8шт.

8

84272055

PLUG,M30 x 2

ASSY, Incl 9 - 11

1шт.

9

84271945

PLUG,M30 x 2

1шт.

10

9626929

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

11

NSS

NOT SOLD SEPARAT

Plug, Incl in 8

1шт.

12

84210797

COVER

1шт.

13

14468780

O-RING,0.139" Thk x 8.73" ID, -269, Cl 5, 75 Duro

1шт.

14

47361879

SCREW,M8 x 20 Full 8.8 PHC

2шт.

Выбрано товаров: 15
