(25.400.080) - FRONT AXLE, BODY, COVER, 2WD

Запчасти Case 590SN (25.400.080) - FRONT AXLE, BODY, COVER, 2WD (25) - FRONT AXLE SYSTEM

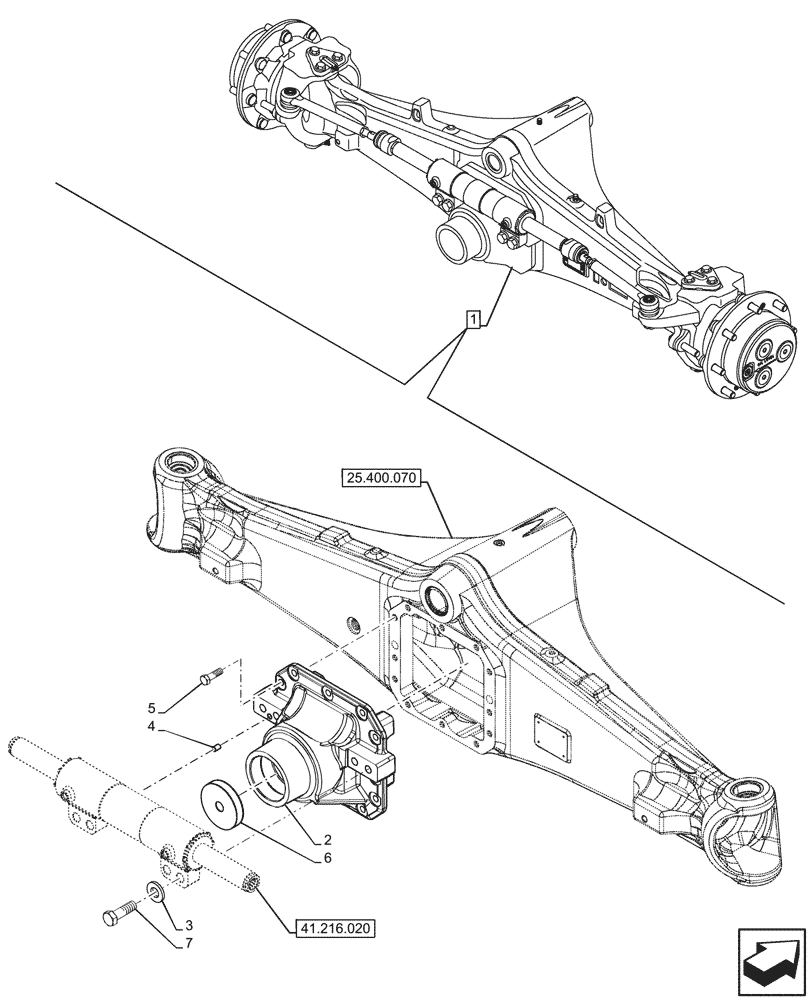

Схема запчастей Case 590SN - (25.400.080) - FRONT AXLE, BODY, COVER, 2WD (25) - FRONT AXLE SYSTEM
25.400.070
4
2
3
5
7
6
1
41.216.020
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47559846

FRONT AXLE

PS1400 ACP, Grey, ASSY, Incl 2 - 7

1шт.

See also Front Axle Components in Figures 25.400.070, 25.400.090, 25.400.100, 41.106.020, 41.216.020

1шт.

2

84299348

COVER

Differential

1шт.

3

84349418

WASHER,19mm ID x 34mm OD x 3mm Thk

4шт.

4

10839710

DOWEL,M10 x 15.00mm

1шт.

5

87015736

BOLT,M12 x 1.75 x 37.68mm, Cl 10.9

12шт.

6

84211606

PLUG

Differential Cover

1шт.

7

47371337

BOLT,Hex, M18 x 1.5 x 60mm

4шт.
