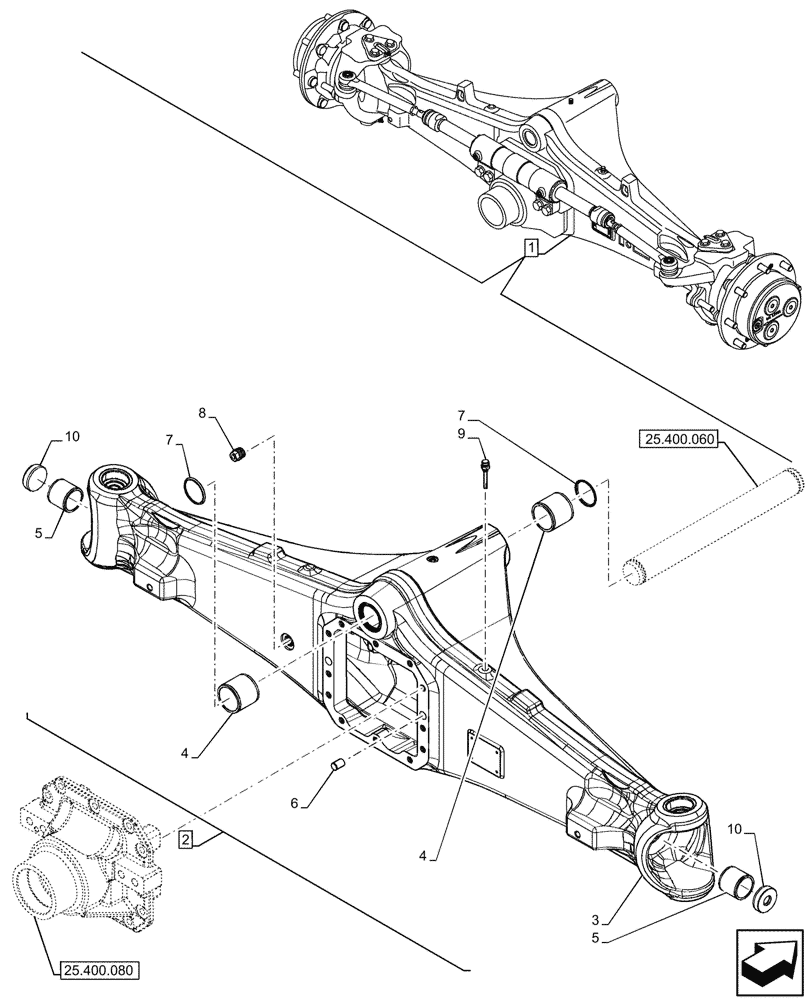

Запчасти Case 590SN (25.400.070) - FRONT AXLE, BODY, 2WD (25) - FRONT AXLE SYSTEM

1

47559846

FRONT AXLE

PS1400 ACP, Grey, ASSY, Incl 2 - 10

1шт.

See also Front Axle Components in Figures 25.400.080, 25.400.090, 25.400.100, 41.106.020, 41.216.020

1шт.

2

84310708

AXLE

ASSY, Housing, Incl 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

Housing, Incl in 2

1шт.

4

87748946

BUSHING,50.21mm ID x 60.03mm OD x 54mm L

2шт.

5

84266996

BUSHING,35.13mm ID x 39.11mm OD x 35mm L

Bronze Steel Backed

2шт.

6

4985062

DOWEL,15mm OD x 25mm L

Pin Clutch Housing Axle

2шт.

7

D123655

SEAL,50mm ID x 60.15mm OD x 4.06mm Thk

Pin Rod End

2шт.

8

14326211

PLUG,M22 x 1.50, R50, ZND

Pipe Magnetic

1шт.

9

84258517

BREATHER,M10 x 1

1шт.

10

84211202

PLUG

Axle Housing

2шт.
