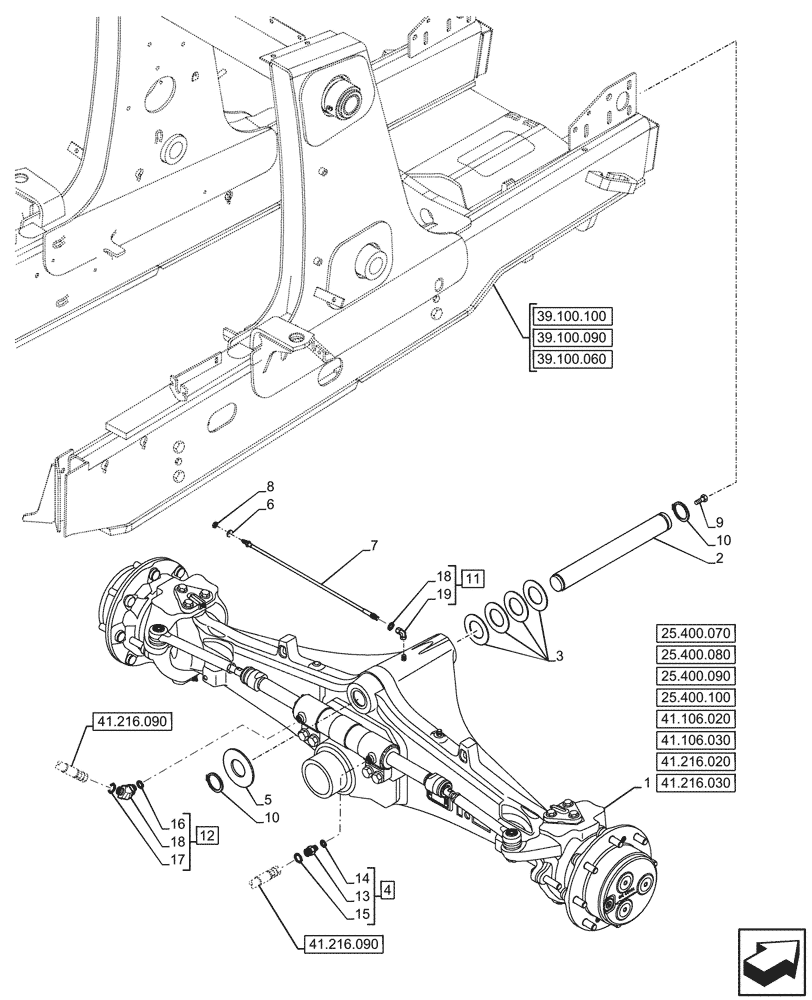

Запчасти Case 590SN (25.400.060) - FRONT AXLE, 2WD (25) - FRONT AXLE SYSTEM

1

47559846

FRONT AXLE

PS1400 ACP, Grey, ASSY

1шт.

2

391451A1

PIVOT PIN,50mm OD x 431.5mm L

1шт.

3

191796A1

WASHER,51.6mm ID x 92mm OD x 1.98mm Thk

4шт.

4

9992342

HYD CONNECTOR,13/16" - 16 ORFS x 9/16" - 18 ORB

ASSY, Incl 13 - 15

1шт.

5

D123684

WASHER,52.3mm ID x 114mm OD x 4.78mm Thk

1шт.

6

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

1шт.

7

87572760

HOSE ASSY.,6.4mm ID x 533mm L

1шт.

8

F53473

LOCK NUT,1/8-27 NPSM

1шт.

9

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

1шт.

10

800-44050

SNAP RING,M50, Ext

2шт.

11

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

ASSY, Incl 18 (Qty 1), 19

1шт.

12

201-321

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

ASSY, Incl 16, 17, 18 (Qty 1)

1шт.

13

NSS

NOT SOLD SEPARAT

Connector, Incl in 4

1шт.

14

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

15

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

16

NSS

NOT SOLD SEPARAT

45° Elbow, Incl in 12

1шт.

17

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

18

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

19

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 11

1шт.
