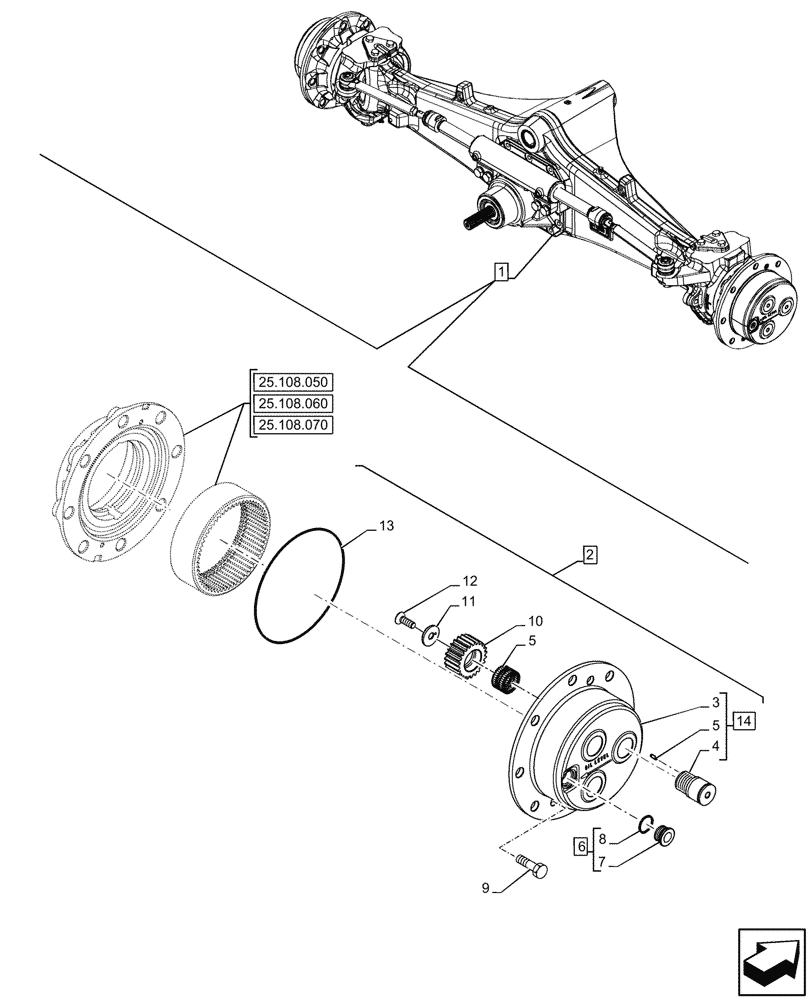

Запчасти Case 590SN (25.310.020) - FRONT AXLE, COMPONENTS, PLANETARY REDUCER, CARRIER, 4WD (25) - FRONT AXLE SYSTEM

1

47559840

FRONT AXLE

ASSY, Grey, PS1428 ACP, 12.8-1, GR, Incl 2 - 8, 10 - 14

1шт.

See also Front Axle Components in Figures 25.100.050, 25.100.060, 25.102.030, 25.102.040, 25.108.050, 25.108.060, 25.108.070, 25.108.080, 25.310.020, 41.106.050, 41.216.050

1шт.

2

401754110005

KIT

ASSY, Planetary Carrier, Incl 3 - 8, 10 - 14

1шт.

3

NSS

NOT SOLD SEPARAT

Carrier, Incl in 14

1шт.

4

84299881

PIN,39.4mmOD x 73mm L

3шт.

5

84380206

NEEDLE ROLLER,4mm OD x 12mm L

3шт.

6

84272055

PLUG,M30 x 2

ASSY, Incl 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

Magnetic Plug, Incl in 6

1шт.

8

9626929

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

9

47361879

SCREW,M8 x 20 Full 8.8 PHC

4шт.

10

84183899

PLANETARY GEAR,23T

3шт.

11

84271320

RETAINER,13mm ID, 43.8mm OD

Planet Gear

3шт.

12

47519334

SCREW,Hex Soc, Lock, M12 x 1.75 x 36mm

3шт.

13

14468780

O-RING,0.139" Thk x 8.73" ID, -269, Cl 5, 75 Duro

1шт.

14

84249603

CARRIER

ASSY, Incl 3 - 5

1шт.
