Запчасти Case 590SN (25.100.060) - FRONT AXLE, COMPONENTS, DIFFERENTIAL, COVERS, 4WD (25) - FRONT AXLE SYSTEM

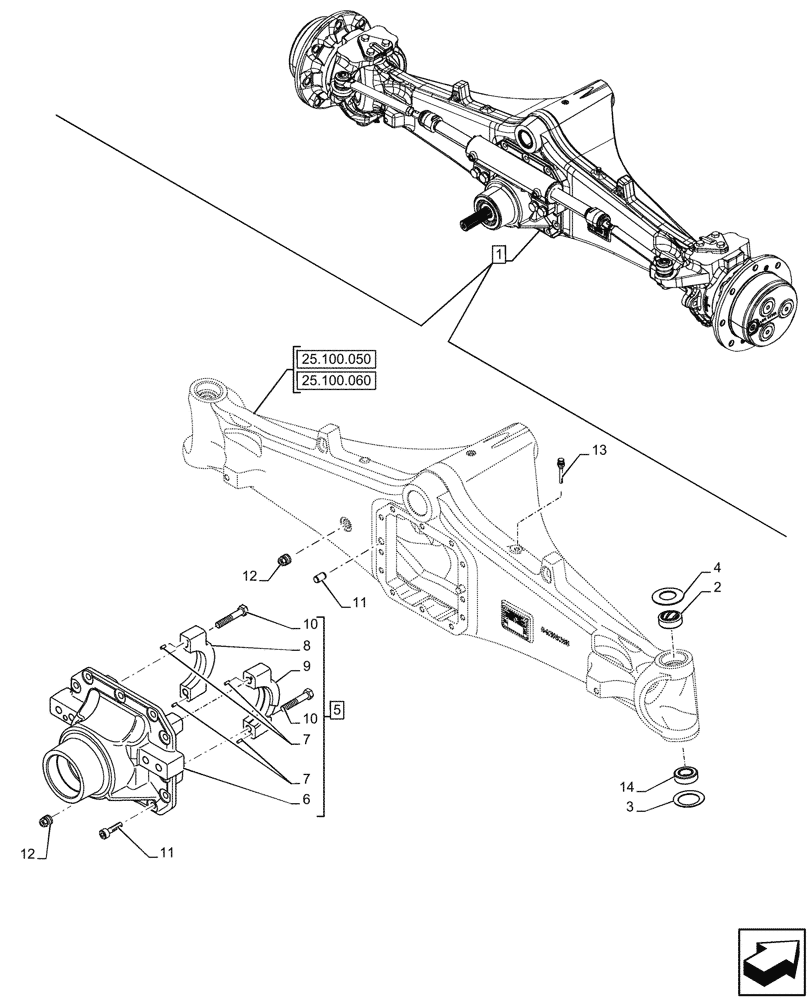

Схема запчастей Case 590SN - (25.100.060) - FRONT AXLE, COMPONENTS, DIFFERENTIAL, COVERS, 4WD (25) - FRONT AXLE SYSTEM
25.100.060
2
13
7
11
10
1
11
10
5
7
4
12
9
8
3
6
12
14
25.100.050

Артикул

Название

Примечание

Количество

1

47559840

FRONT AXLE

ASSY, Grey, PS1428 ACP, 12.8-1, GR, Incl 2 - 14

1шт.

See also Front Axle Components in Figures 25.100.050, 25.102.030, 25.102.040, 25.108.050, 25.108.060, 25.108.070, 25.108.080, 25.310.020, 41.106.050, 41.216.050

1шт.

2

84241615

GROOVED BUSHING,35mm ID x 52mm OD x 20mm L

2шт.

3

84241624

SPRING,Belleville, 47.63mm ID x 69.85mm OD x 0.97mm Thk

2шт.

4

84241623

SPRING,Belleville, 36.13mm ID x 70.85mm OD x 2.26mm Thk

2шт.

5

84299349

DIFFERENTIAL ASSY

Incl 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

Differential Cover, Incl in 5

1шт.

7

4966244

PIN,5mm OD x 15mm L

4шт.

8

NSS

NOT SOLD SEPARAT

Bearing Cap, LH, Incl in 5

1шт.

9

NSS

NOT SOLD SEPARAT

Bearing Cap, RH, Incl in 5

1шт.

10

84273748

BOLT,Hex, Lock, M12 x 1.75 x 70mm, Cl. 10.9

4шт.

11

84273744

LOCK BOLT,Hex, Lock, M12 x 1.75 x 30mm, Cl. 10.9

12шт.

12

14326211

PLUG,M22 x 1.50, R50, ZND

Pipe Magnetic

2шт.

13

84258517

BREATHER,M10 x 1

1шт.

14

87523063

SPHERICAL BEARING,28mm ID x 52mm OD x 16mm W

2шт.

Выбрано товаров: 15
