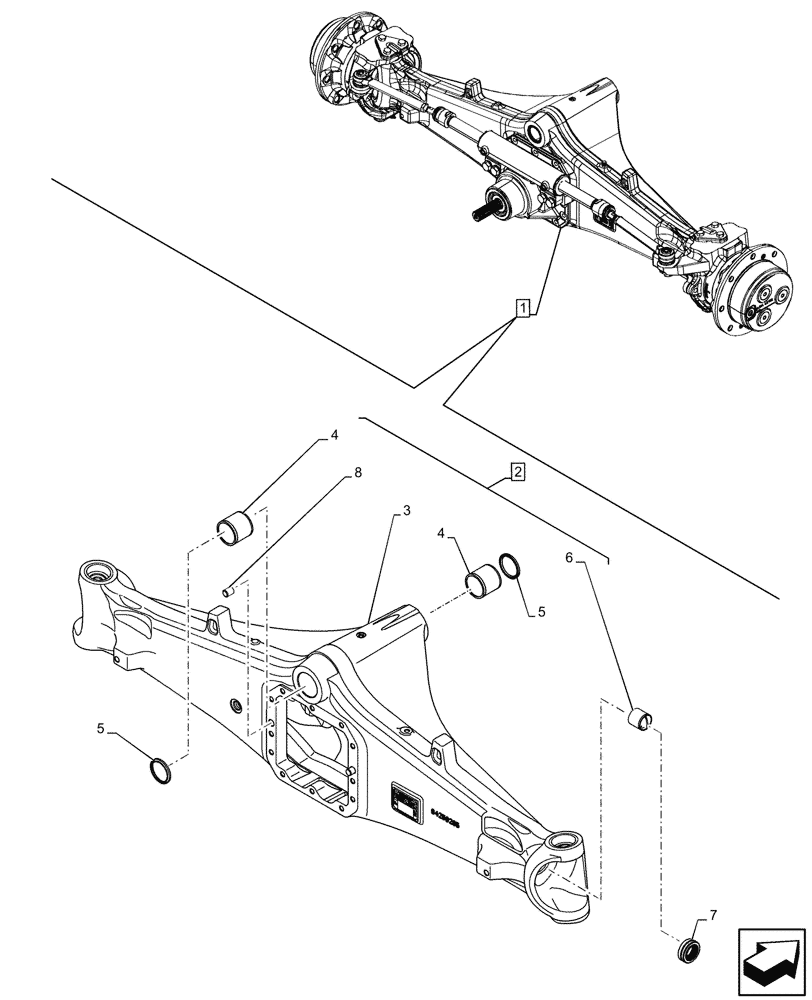

Запчасти Case 590SN (25.100.050) - FRONT AXLE, COMPONENTS, HOUSING, 4WD (25) - FRONT AXLE SYSTEM

1

47559840

FRONT AXLE

ASSY, Grey, PS1428 ACP, 12.8-1, GR, Incl 2 - 8

1шт.

See also Front Axle Components in Figures 25.100.060, 25.102.030, 25.102.040, 25.108.050, 25.108.060, 25.108.070, 25.108.080, 25.310.020, 41.106.050, 41.216.050

1шт.

2

84310708

AXLE

ASSY, Housing, Incl 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Axle Housing, Incl in 2

1шт.

4

87748946

BUSHING,50.21mm ID x 60.03mm OD x 54mm L

2шт.

5

D123655

SEAL,50mm ID x 60.15mm OD x 4.06mm Thk

Pin Rod End

2шт.

6

84266996

BUSHING,35.13mm ID x 39.11mm OD x 35mm L

Bronze Steel Backed

2шт.

7

84266933

SEAL,35mm ID x 52mm OD x 18.5mm Thk

Oil

2шт.

8

4985062

DOWEL,15mm OD x 25mm L

Pin Clutch Housing Axle

2шт.
