(90.116.040) - VAR - 742803 - FRONT FENDER, 2WD

Запчасти Case 590SN (90.116.040) - VAR - 742803 - FRONT FENDER, 2WD (90) - PLATFORM, CAB, BODYWORK AND DECALS

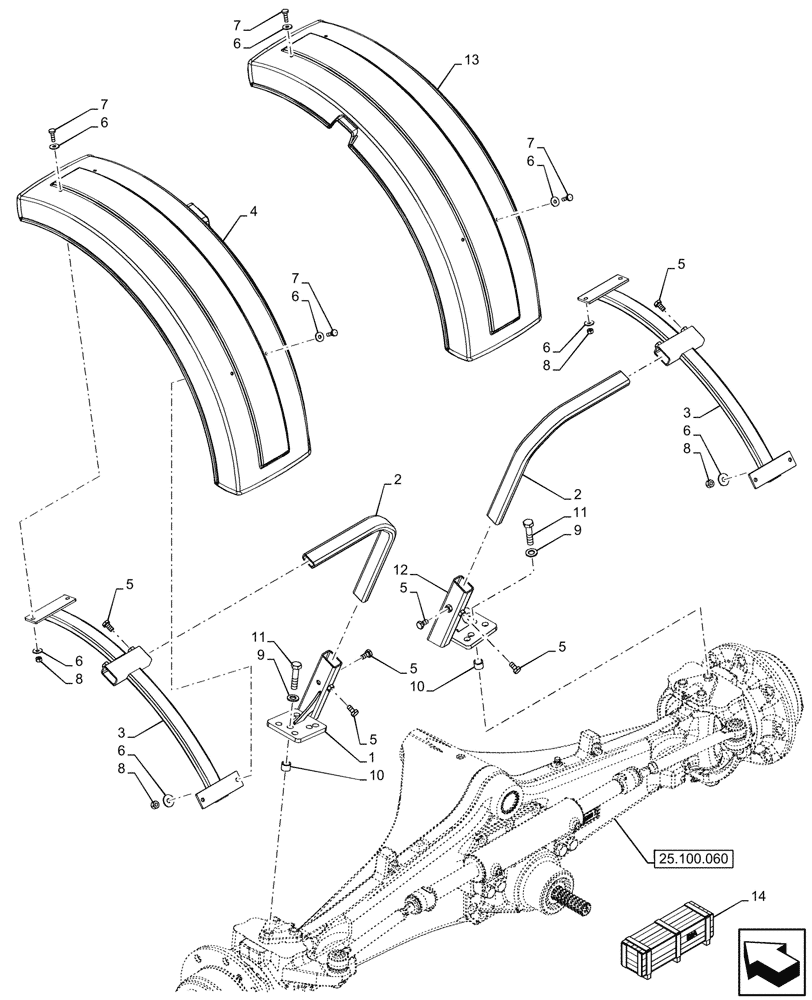

Схема запчастей Case 590SN - (90.116.040) - VAR - 742803 - FRONT FENDER, 2WD (90) - PLATFORM, CAB, BODYWORK AND DECALS
25.100.060
5
1
5
9
3
2
13
11
4
9
14
10
7
6
8
6
5
5
8
11
6
10
12
6
5
7
5
6
6
3
6
7
2
6
7
8
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

48008818

BRACKET

LH Fender Mounting

1шт.

2

85826132

SUPPORT

2шт.

3

9968884

SUPPORT

2шт.

4

9968885

FRONT FENDER

LH

1шт.

5

9861444

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

8шт.

6

84007539

BELLEVILLE WASHER,M6 Bolt Size x 18mm OD x 1.4mm Thk

16шт.

7

86511830

SCREW,Phillips Drive, Pan HD, M6 x 20mm, Cl 4.8

8шт.

8

86500656

LOCK NUT,M6 x 1, Cl 8

8шт.

9

14496831

WASHER,15mm ID x 28mm OD x 2.5mm Thk

6шт.

10

84576087

SPACER,0.66" ID x 0.88" OD x 0.62" L

6шт.

11

11116431

BOLT,Hex, M14 x 2 x 60mm, Cl 10.9

6шт.

12

48008822

BRACKET

RH Fender Mounting

1шт.

13

9968886

FRONT FENDER

RH

1шт.

14

48067465

CONSTRUCTION DIA

Front Fenders, Incl 1 - 13

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
