(10.206.040) - FUEL FILTER/WATER SEPARATOR, COMPONENTS

Запчасти Case 590SN (10.206.040) - FUEL FILTER/WATER SEPARATOR, COMPONENTS (10) - ENGINE

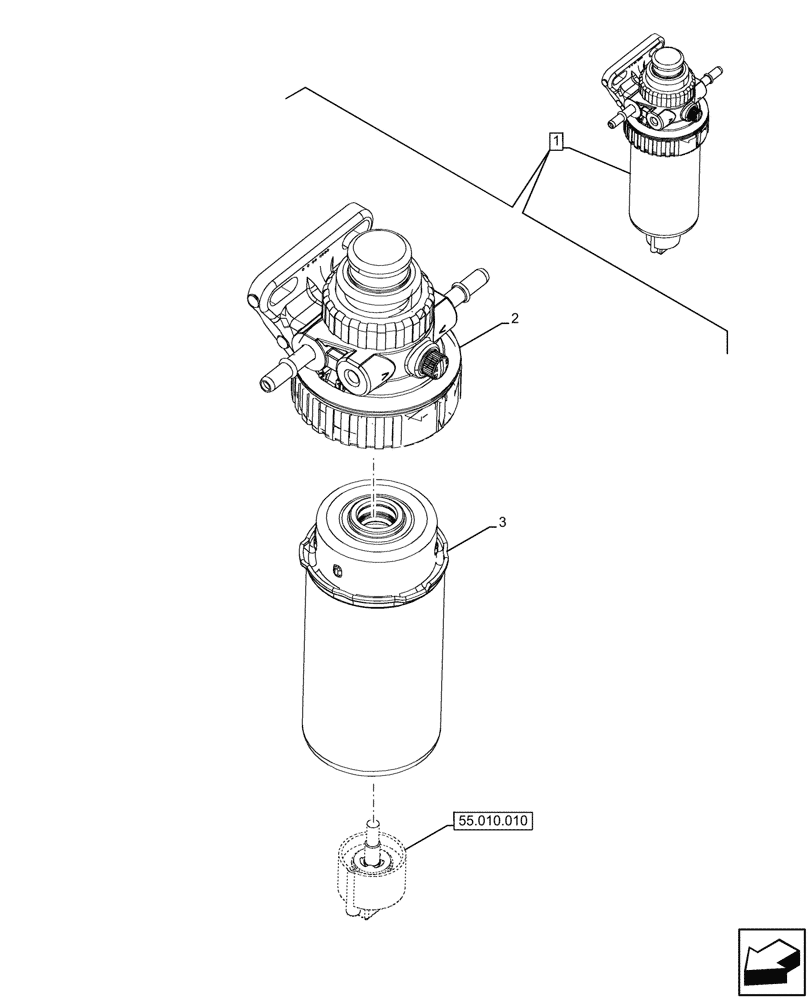

Схема запчастей Case 590SN - (10.206.040) - FUEL FILTER/WATER SEPARATOR, COMPONENTS (10) - ENGINE
55.010.010
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47357623

FUEL FILTER,W/ WIF Sensor

ASSY, Incl 2, 3

1шт.

See also Fuel Filter Components in Figure 55.010.010

1шт.

2

NSS

NOT SOLD SEPARAT

Fuel Filter Element, Incl in 1

1шт.

3

47357911

FUEL FILTER,88.1mm OD x 195.7mm L, 30 Microns

Fuel Service

1шт.

Выбрано товаров: 4
