Запчасти Case 590SN (88.100.84[10]) - DIA KIT, EXTENDABLE DIPPER, UNIVERSAL, COUPLING, BACKHOE ARM, LINK (88) - ACCESSORIES

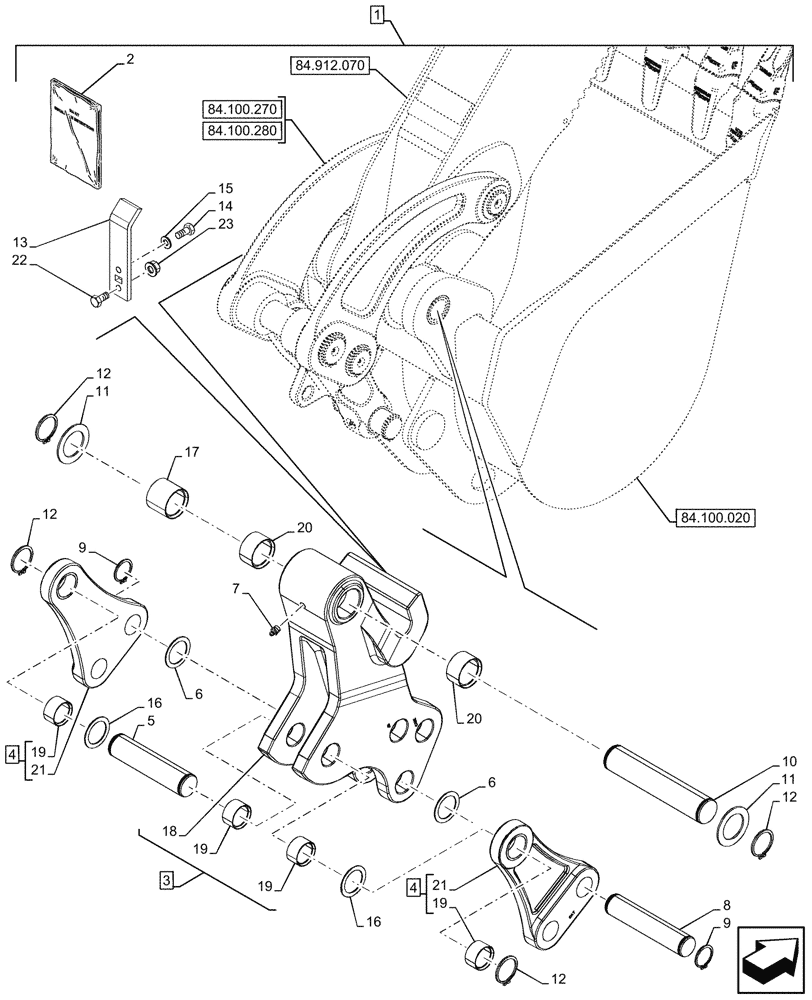

Схема запчастей Case 590SN - (88.100.84[10]) - DIA KIT, EXTENDABLE DIPPER, UNIVERSAL, COUPLING, BACKHOE ARM, LINK (88) - ACCESSORIES
84.100.020
13
14
7
11
9
19
12
21
21
9
12
12
10
19
23
22
6
11
1
4
8
4
16
20
16
20
15
19
19
18
5
6
3
2
12
17
84.100.280
84.912.070
84.100.270

Артикул

Название

Примечание

Количество

1

48059278

CONSTRUCTION DIA

Universal Backhoe Coupler, Incl 2 - 23

1шт.

Refer to Installation Instructions P/N for Correct Assembly Procedure

1шт.

2

48059458

INSTRUCTION

1шт.

3

47959417

LINK

ASSY, Grey, Incl 18, 19 (Qty 2), 20

1шт.

4

47986561

LINK

ASSY, Grey, Incl 19 (Qty 2), 21

2шт.

5

47621809

PIN,54.9mm OD x 210mm L

Dump Link to Coupler

1шт.

6

87690482

WASHER,2.03" ID x 2.75" OD x 0.07" Thk

2шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

8

47621517

PIN,44.9mm OD x 220mm L

Switch Link to Coupler

1шт.

9

84163822

SNAP RING,45mm ID

2шт.

10

47674613

PIN,54.9mm OD x 276mm L

Coupler to Dipper

1шт.

11

495-81230

WASHER,2.31" ID x 3.5" OD x 0.13" Thk

2шт.

12

84233536

RING,55mm ID, Ext

4шт.

13

47928630

PLATE

1шт.

14

86624978

BOLT,Hex, M10 x 35mm, Cl 10.9, Full Thd

1шт.

15

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

16

84231927

SHIM,57mm ID x 70mm OD x 2.77mm Thk

2шт.

17

47816273

BUSHING,60.42mm ID x 67mm OD x 54.5mm L

1шт.

18

NSS

NOT SOLD SEPARAT

Link, Incl in 3

1шт.

19

84229923

BUSHING,55.19mm ID x 64.98mm OD x 29mm L

4шт.

20

84227023

BUSHING,67.75mm ID x 79.98mm OD x 30mm L

2шт.

21

NSS

NOT SOLD SEPARAT

Link, Incl in 4

1шт.

22

374892

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8

1шт.

23

87016577

NUT,M10

1шт.

Выбрано товаров: 24
