(88.100.50[05]) - DIA KIT, CAB, AIR CONDITIONING, HPCR

Запчасти Case 590SN (88.100.50[05]) - DIA KIT, CAB, AIR CONDITIONING, HPCR (88) - ACCESSORIES

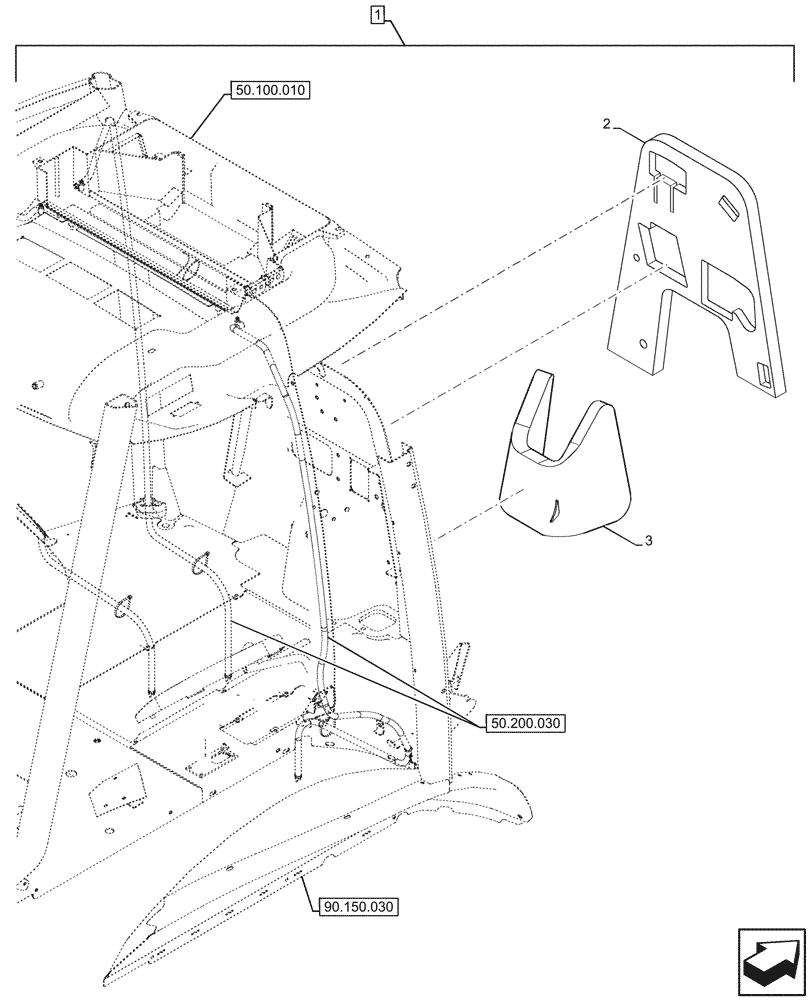

Схема запчастей Case 590SN - (88.100.50[05]) - DIA KIT, CAB, AIR CONDITIONING, HPCR (88) - ACCESSORIES
90.150.030
2
1
3
50.100.010
50.200.030
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47955677

CONSTRUCTION DIA

Air Conditioning Conversion, Incl 2, 3

1шт.

Refer to Installation Instructions P/N for Correct Assembly Procedure

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

87451021

PROTECTIVE COVER

Firewall, Upper

1шт.

3

87440283

COVER

Firewall, Lower

1шт.

Выбрано товаров: 5
