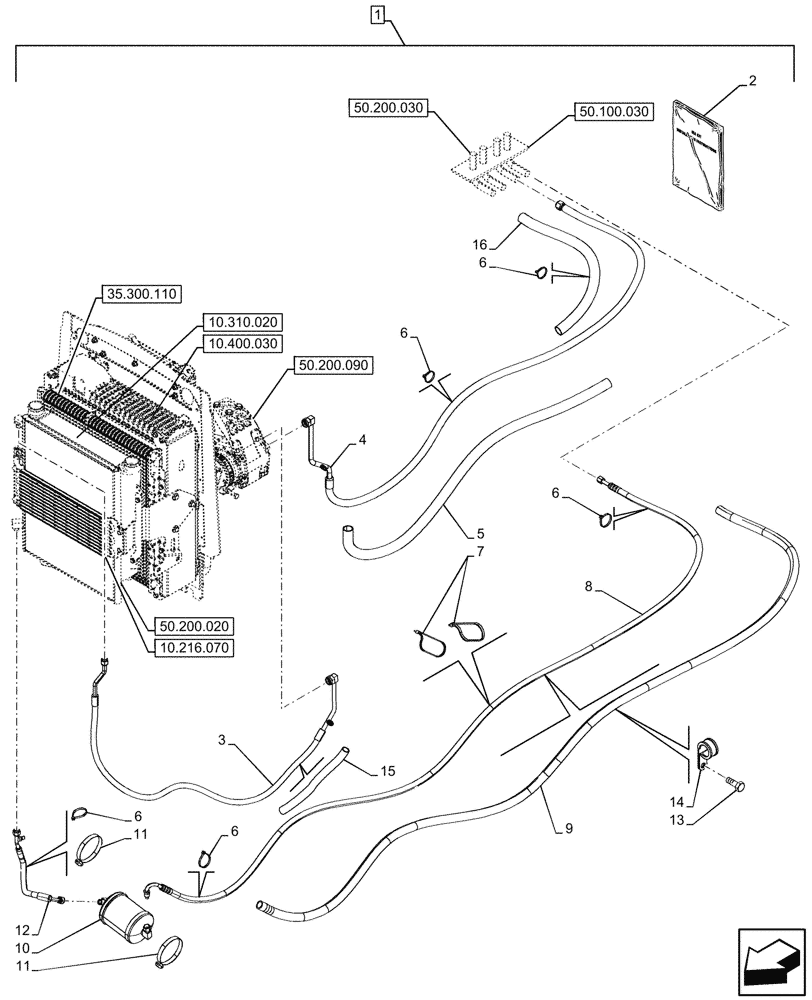

Запчасти Case 590SN (88.100.50[04]) - DIA KIT, CAB, AIR CONDITIONING, HPCR (88) - ACCESSORIES

1

47955677

CONSTRUCTION DIA

Air Conditioning Conversion, Incl 2 - 16

1шт.

Refer to Installation Instructions P/N for Correct Assembly Procedure

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

84412153

INSTRUCTION

1шт.

3

84398074

A/C HOSE,1350mm L

Compressor to Condenser

1шт.

4

87630220

HOSE ASSY.,16mm ID x 2425mm L

Cab to Compressor

1шт.

5

87726951

HOSE PROTECTION,26.3mm ID x 1200mm L

1шт.

6

L11541

CABLE TIE,203.2mm L, Nylon

5шт.

7

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.

8

87630219

A/C HOSE,8mm ID x 2930mm L

Dryer to Cab

1шт.

9

87726950

HOSE PROTECTION

1шт.

10

86984155

RECEIVER-DRYER

1шт.

11

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

2шт.

12

87630218

A/C HOSE,340mm L

Condenser to Dryer

1шт.

13

490-11012

SCREW,Cross Pan Hd, #10-32 x 3/4"

1шт.

14

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

1шт.

15

191703A1

HOSE PROTECTION,28mm ID x 34mm OD x 400mm L

2шт.

16

191704A1

HOSE PROTECTION,19mm ID x 25mm OD x 460mm L

3шт.
