Запчасти Case 590SN (88.100.35[35]) - DIA KIT, DIPPER, LOCK VALVE (88) - ACCESSORIES

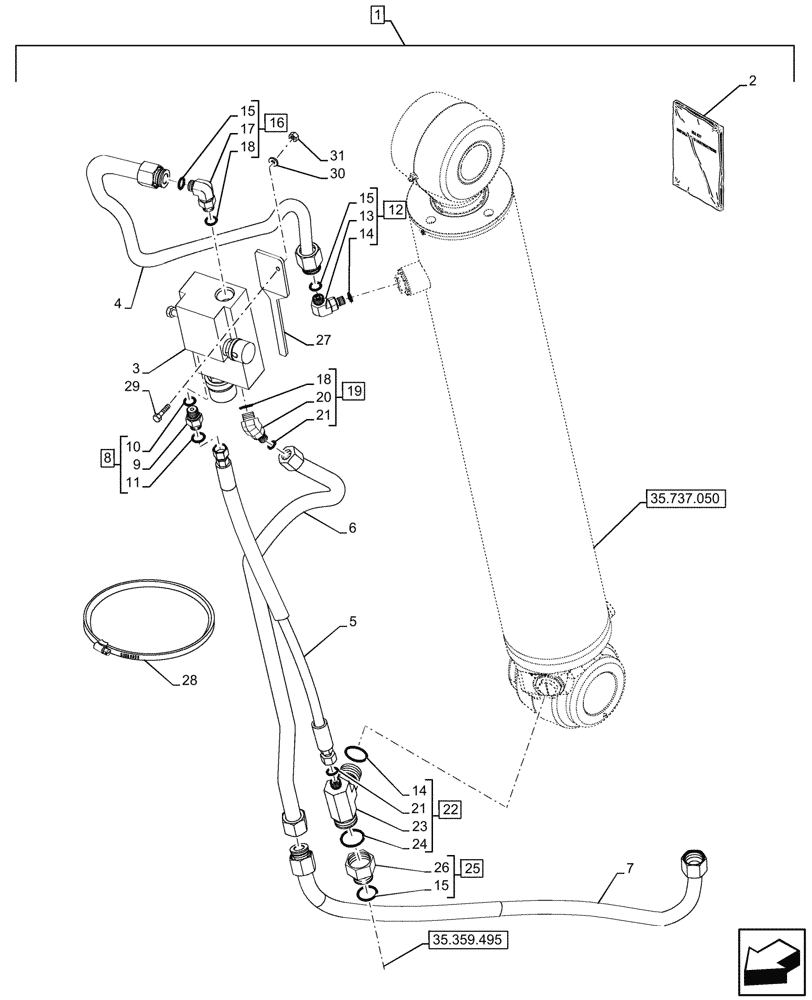

Схема запчастей Case 590SN - (88.100.35[35]) - DIA KIT, DIPPER, LOCK VALVE (88) - ACCESSORIES
35.359.495
2
9
29
7
12
25
14
26
1
16
6
11
10
13
17
18
23
27
15
28
5
15
19
21
3
4
21
8
22
20
18
15
31
14
30
24
35.737.050

Артикул

Название

Примечание

Количество

1

84588435

CONSTRUCTION DIA

Dipper, Lock Valve, Incl 2 - 31

1шт.

Refer to Installation Instructions P/N for Correct Assembly Procedure

1шт.

2

84588447

INSTRUCTION

1шт.

3

87353314

SAFETY VALVE

ASSY

1шт.

4

84485659

HYD TUBE

Dipper, Lock Valve, Cylinder

1шт.

5

84485660

HYDRAULIC HOSE,6.3mm ID x 840mm L

Dipper Lock Valve, Pilot Control

1шт.

6

84485658

HYD TUBE

Dipper Lock Valve, Inlet

1шт.

7

84574759

HYDRAULIC HOSE,16mm ID x 2325mm L

Dipper Lock Valve, Inlet

1шт.

8

201-111

HYD CONNECTOR,9/16" - 18 Male ORFS x 9/16" - 18 Male ORB

ASSY, Incl 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

Connector, Incl in 8

1шт.

10

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

12

9991973

ELBOW,1-14" ORFS x 1-1/16"-12 ORB

ASSY, Incl 13, 14 (Qty 1), 15 (Qty 1)

1шт.

13

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 12

1шт.

14

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

15

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

16

87675522

90 ELBOW,90 Degree 1"-14 x 7/8"-14 Adj ORFS

ASSY, Incl 15 (Qty 1), 17, 18 (Qty 1)

1шт.

17

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 16

1шт.

18

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

19

84401339

45 ELBOW

ASSY, Incl 18 (Qty 1), 20, 21 (Qty 1)

1шт.

20

NSS

NOT SOLD SEPARAT

45° Elbow, Incl in 19

1шт.

21

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

22

84257031

FITTING,9/16-18 ORFS x 3/16-12 ORFS x 1/16-12 ORB

ASSY, Incl 14 (Qty 1), 21 (Qty 1), 23, 24

1шт.

23

NSS

NOT SOLD SEPARAT

Tee, Incl in 22

1шт.

24

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

25

84989617

HYD CONNECTOR,1"-14 ORFS x 1-3/16"-12 Fem ORFS

ASSY, Incl 15 (Qty 1), 26

1шт.

26

NSS

NOT SOLD SEPARAT

Reducer, Incl in 25

1шт.

27

84558829

MOUNTING PLATE

1шт.

28

214-31112

HOSE CLAMP,6-1/4" - 7-1/8", HD Worm

1шт.

29

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

1шт.

30

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

1шт.

31

43362

NUT,M8 x 1.25, Cl 10

1шт.
