(88.100.10[01]) - DIA KIT, EXHAUST SYSTEM W/ SPARK ARRESTER

Запчасти Case 590SN (88.100.10[01]) - DIA KIT, EXHAUST SYSTEM W/ SPARK ARRESTER (88) - ACCESSORIES

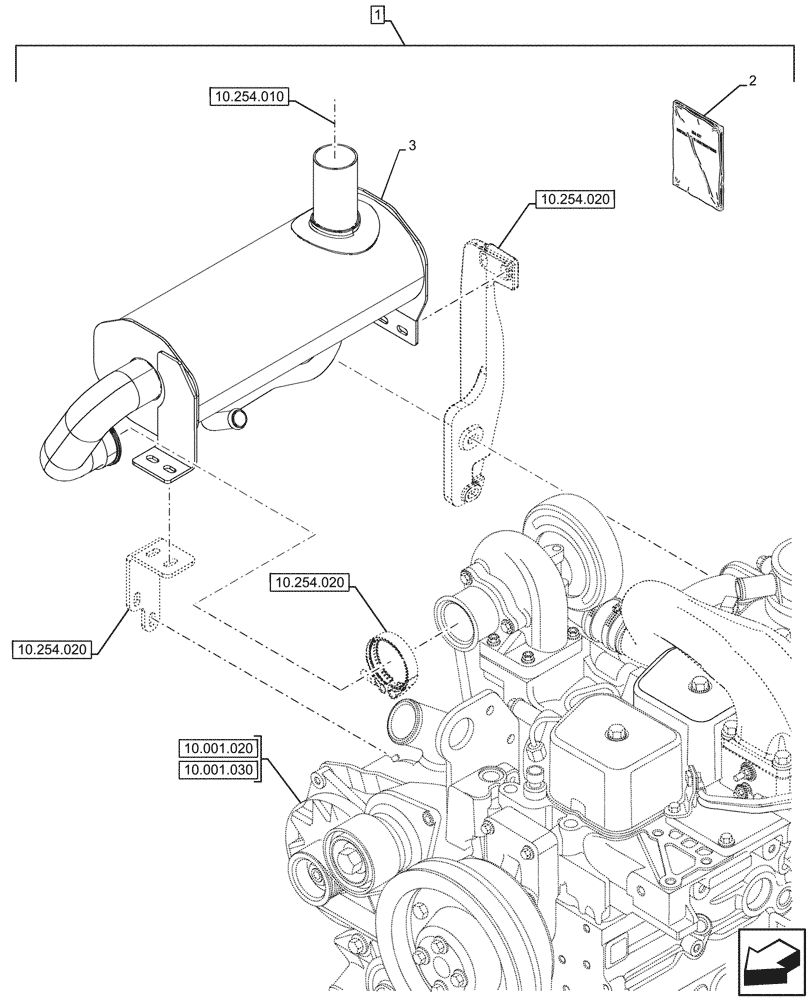

Схема запчастей Case 590SN - (88.100.10[01]) - DIA KIT, EXHAUST SYSTEM W/ SPARK ARRESTER (88) - ACCESSORIES
10.001.020
3
2
1
10.001.030
10.254.010
10.254.020
10.254.020
10.254.020
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87706723

SERVICE KIT

Muffler, Spark Arrested

1шт.

Refer to Installation Instructions P/N for Correct Assembly Procedure

1шт.

2

87706728

INSTRUCTION

1шт.

3

87617605

MUFFLER

W/ Spark Arrested

1шт.
