(84.912.130) - STANDARD DIPPER, W/ HYDRAULIC COUPLER

Запчасти Case 590SN (84.912.130) - STANDARD DIPPER, W/ HYDRAULIC COUPLER (84) - BOOMS, DIPPERS & BUCKETS

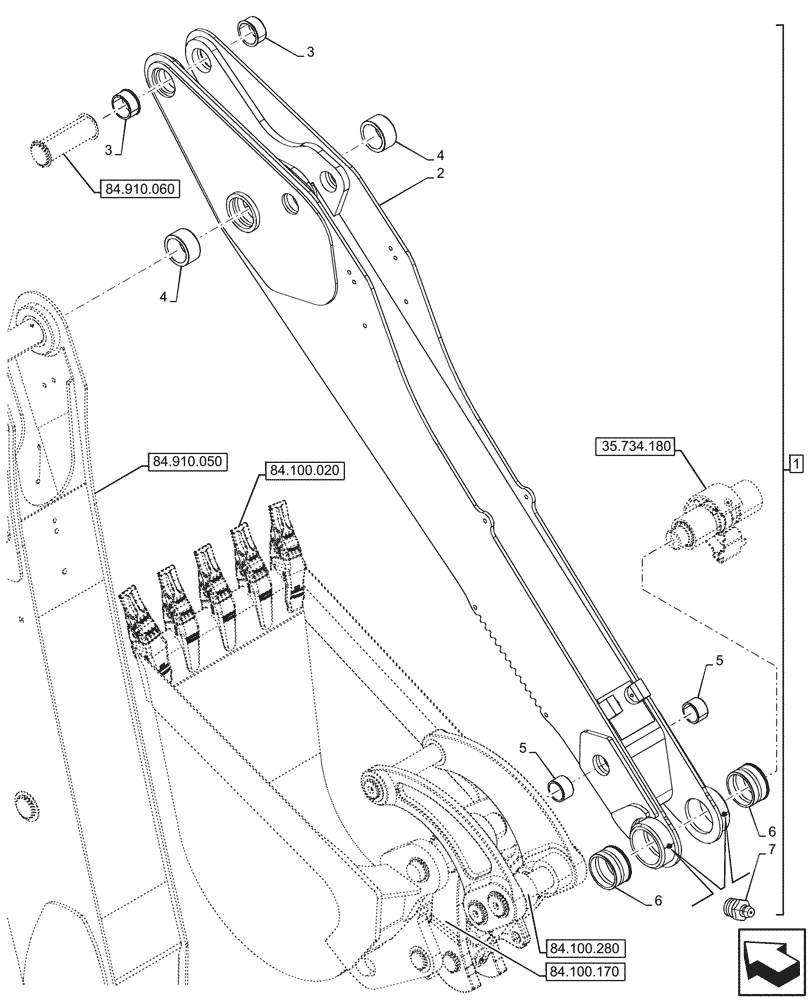

Схема запчастей Case 590SN - (84.912.130) - STANDARD DIPPER, W/ HYDRAULIC COUPLER (84) - BOOMS, DIPPERS & BUCKETS
84.100.020
5
6
7
3
5
1
6
2
4
3
4
84.910.050
84.100.170
35.734.180
84.910.060
84.100.280
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84479425

DIPPER

ASSY, Power Tan, Incl 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

STD Dipper, Incl in 1

1шт.

3

84229926

BUSHING,70.19mm ID x 79.98mm OD x 34mm L

2шт.

4

84234854

BUSHING,80.19mm ID x 99.98mm OD x 50mm L

2шт.

5

84169285

BUSHING,50.20mm ID x 59.98mm OD x 27mm L

2шт.

6

84246711

BUSHING,89.13mm ID x 101.73mm OD x 56mm L

2шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

Выбрано товаров: 7
