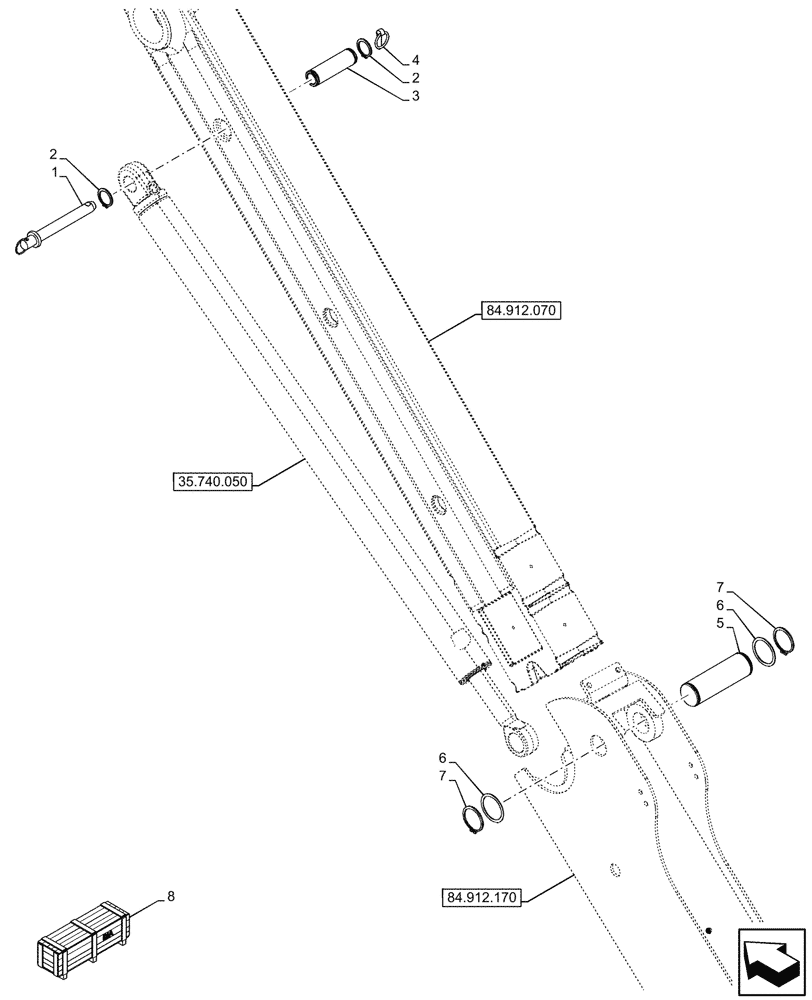

Запчасти Case 590SN (84.912.080) - VAR - 423076 - EXTENDABLE DIPPER, PIN (84) - BOOMS, DIPPERS & BUCKETS

1

D140247

LOCK PIN,25.4mm OD x 232.6mm L

Lock Transport

1шт.

2

800-44040

SNAP RING,M40, Ext

2шт.

3

300588A1

PIN,40mm OD x 136mm L

Cylinder Extendable

1шт.

4

A33509

PIN,11.18mm OD

1шт.

5

84225660

PIN,59.9mm OD x 186mm L

Bucket Cylinder to Dipper

1шт.

6

84224845

SHIM,62mm ID x 75mm OD x 1.5mm Thk

2шт.

7

84224886

RING,60mm ID, Ext

2шт.

8

47946552

CONSTRUCTION DIA

Standard Dipper to Extendahoe Dipper Conversion, Incl 1 - 5

1шт.

Valid for 590SN (Livery) NRC Model Only, W/ Foot Swing Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

47945950

CONSTRUCTION DIA

Standard Dipper to Extendahoe Dipper Conversion, Incl 1 - 5

1шт.

Valid for 590SN (Livery) NRC Model Only, W/ Hand Swing Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
