(84.912.070) - VAR - 423076 - EXTENDABLE DIPPER, FIXED, ARM

Запчасти Case 590SN (84.912.070) - VAR - 423076 - EXTENDABLE DIPPER, FIXED, ARM (84) - BOOMS, DIPPERS & BUCKETS

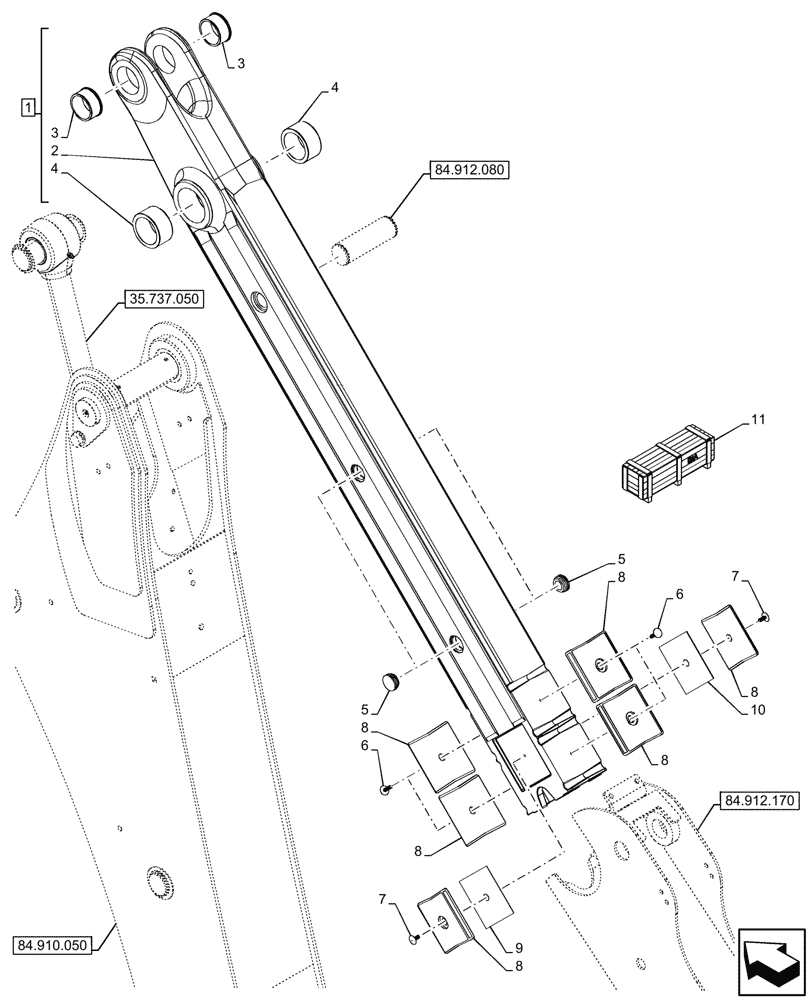

Схема запчастей Case 590SN - (84.912.070) - VAR - 423076 - EXTENDABLE DIPPER, FIXED, ARM (84) - BOOMS, DIPPERS & BUCKETS
35.737.050
2
8
4
6
8
7
11
1
8
4
7
8
6
10
5
3
8
5
9
3
8
84.912.170
84.912.080
84.910.050
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84298779

DIPPER

ASSY, Power Tan, Incl 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

Dipper, Incl in 1

1шт.

3

84229926

BUSHING,70.19mm ID x 79.98mm OD x 34mm L

2шт.

4

84234854

BUSHING,80.19mm ID x 99.98mm OD x 50mm L

2шт.

5

D133865

PLUG

4шт.

6

183443A1

PIN,6.6mm OD x 38.5mm L

4шт.

7

183509A1

PIN,8.3mm OD x 22mm L

2шт.

8

451384A1

WEAR PLATE

6шт.

9

132844A1

SHIM,19mm ID x 142mm OD x 0.8mm Thk

1шт.

10

132842A1

SHIM,19mm ID x 142mm OD x 1.6mm Thk

1шт.

11

47946552

CONSTRUCTION DIA

Standard Dipper to Extendahoe Dipper Conversion, Incl 1 - 10

1шт.

Valid for 590SN (Livery) NRC Model Only, W/ Foot Swing Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

11

47945950

CONSTRUCTION DIA

Standard Dipper to Extendahoe Dipper Conversion, Incl 1 - 10

1шт.

Valid for 590SN (Livery) NRC Model Only, W/ Hand Swing Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
