Запчасти Case 590SN (05.100.02) - INITIAL STOCKING LIST (LIST B) (05) - SERVICE & MAINTENANCE

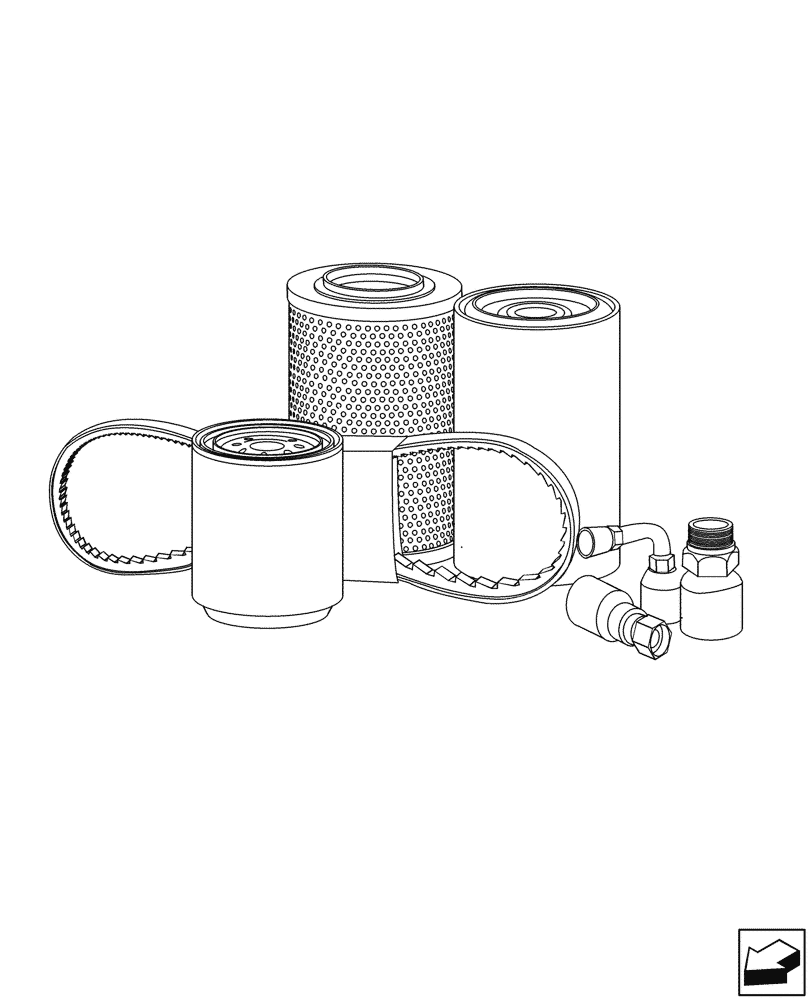

Схема запчастей Case 590SN - (05.100.02) - INITIAL STOCKING LIST (LIST B) (05) - SERVICE & MAINTENANCE

Артикул

Название

Примечание

Количество

1

86616248

BULB,H1, 12V, 55W

Rotating Beacon

1шт.

2

388053A2

BULB,14V, 1W

Instrument Cluster

1шт.

3

529068

BULB,#1156, 12V, 21W

W/O Cab, Corner, Hazard & Turn

1шт.

4

86537133

BULB,C6, #1157, 12.8V

W/O Cab, Corner, Rear, Turn & SMV

1шт.

5

14148190

BULB,P21W, 12V, 21W

W/ Cab, Corner, Front, SMV

1шт.

6

87304554

HOLDER

Bulb

1шт.

7

504062795

DIPSTICK

Engine Oil Level

1шт.

Valid for 580N Model only

1шт.

8

2855815

DIPSTICK

Engine Oil Level

1шт.

Valid for 580SN, 580SN WT, 590SN Models only

1шт.

9

87601345

DIPSTICK,824mm L

Transmission Oil Level

1шт.

10

84287552

SENDER UNIT

Fuel Tank

1шт.

11

84293447

CAP,128.7mm D

Fuel Tank

1шт.

12

226456A1

LEVEL GAUGE

Hydraulic Oil Tank

1шт.

13

10395890

FUSE,5A, Mini, Beige

1шт.

14

87522595

FUSE,7.5A, Mini, Brown

1шт.

15

87522597

FUSE,10A, Mini, Red

1шт.

16

87524877

FUSE,15A, Mini, Blue

1шт.

17

10401190

FUSE,20A, Mini, Yellow

1шт.

18

10402190

FUSE,30A, Mini

1шт.

19

87410602

FUSE,300A, Blade

1шт.

20

347706A3

RELAY,12V, 5A

1шт.

21

86619908

RELAY,12V, 150A

Cold Start

1шт.

22

84271717

RELAY,12V, 50A

1шт.

23

84543666

RELAY,12V, 40A, Mini

1шт.

24

87655334

RELAY,12V, 35A, Micro

1шт.

Valid for 580N Model only

1шт.

25

87436836

RELAY,12V, 40 Amp

1шт.

26

86992395

STARTER MOTOR,12V, 2.7kW

1шт.

27

84383461

THERMOSTAT

1шт.

Valid for 580N Model only

1шт.

28

84322388

THERMOSTAT

1шт.

Valid for 580SN, 580SN WT, 590SN Models only

1шт.

29

87669391

WIPER ARM,Single, 550mm L

Front, W/O Cab

1шт.

30

84562946

WIPER ARM,Single, 550mm

Front, W/ Cab

1шт.

31

87669712

WIPER ARM,Single, 429mm L

Rear

1шт.

32

87669761

WIPER BLADE,600mm L

Front

1шт.

33

87669401

WIPER BLADE,400mm L

Rear

1шт.

34

282775A1

IGNITION SWITCH

1шт.

35

84300765

TEMPERATURE SENDER,1/2" - 14 NPTF

Engine Oil

1шт.

36

2852889

PRESSURE SWITCH

Engine Oil

1шт.

Valid for 580N Model only

1шт.

37

504358206

Engine Oil

SWITCH,Pressure

1шт.

Valid for 580SN, 580SN WT, 590SN Models only

1шт.

38

504333094

Pressure, Injection System

SENSOR

1шт.

Valid for 580SN, 580SN WT, 590SN Models only

1шт.

39

4890190

SENSOR

Speed, on Engine

1шт.

Valid for 580SN, 580SN WT, 590SN Models only

1шт.

40

4890189

SENSOR

Speed, on Engine

1шт.

Valid for 580SN, 580SN WT, 590SN Models only

1шт.

41

504372225

SENSOR,Temperature / Pressure

on Engine

1шт.

Valid for 580SN, 580SN WT, 590SN Models only

1шт.

42

504025599

TEMPERATURE SENDER

Water, Grid Heater

1шт.

Valid for 580N Model only

1шт.

43

504264463

Water Temperature, on Engine

SENSOR

1шт.

Valid for 580N Model only

1шт.

44

4897224

SENSOR

Water Temperature, on Engine

1шт.

Valid for 580SN, 580SN WT, 590SN Models only

1шт.

45

87612475

SENSOR

Water in Fuel, on Engine Fuel Filter

1шт.

Valid for 580SN, 580SN WT, 590SN Models only

1шт.

46

87673445

SWITCH

Air Cleaner Restrictor

1шт.

47

84473366

SENSOR

Transmission Gear Speed

1шт.

48

87701313

SENSOR

Transmission Oil Pressure

1шт.

49

87705716

SENSOR

Pressure, for Powershift Transm.

1шт.

50

87705451

SENSOR

Speed, for Powershift Transm.

1шт.

Valid for 580SN, 580SN WT, 590SN Models only

1шт.

51

87705447

SENSOR

Temperature, for Powershift Transm.

1шт.

52

401061A1

SEAL KIT

Steering Cylinder, 2WD

1шт.

Valid for 580N, 580SN Models only

1шт.

53

87524436

REPAIR KIT

STD Transmission, Control Valve

1шт.

54

85828002

SEAL KIT

Pilot Controls, Pressure Control Valve

2шт.

55

85827998

SEAL KIT

Pilot Controls, Pressure Control Valve

1шт.

56

85827999

SEAL KIT

Pilot Controls, Pressure Control Valve

1шт.

57

85828000

SEAL KIT

Pilot Controls, Pressure Control Valve

4шт.

58

85824281

SEAL KIT,Control Valve Section, Complete

Proportional Pilot Pressure Control Valve

1шт.

59

87661956

SEAL KIT

Steering Valve, STD Steer

1шт.

60

84227088

SEAL KIT

Steering Valve, Comfort Steer

1шт.

61

388713A1

SEAL KIT

Swing Dampening Valve

1шт.

62

84422097

SERVICE KIT

Check Valve, Dual Auxiliary

1шт.

63

87438028

SEAL KIT

Hydraulic Coupler Single Valve

1шт.

64

87438024

SEAL KIT

Hydraulic Coupler Single Valve

1шт.

65

277217

SEAL KIT

Control Block, Powershift Transmission

1шт.

Valid for 580SN, 580SN WT, 590SN Models only

1шт.

66

84296788

SEAL KIT

Loader Control Valve Section

1шт.

67

87617657

O-RING KIT

Loader Control Valve Section

1шт.

68

1346108C2

SEAL KIT

Loader Control Valve Section

1шт.

69

1346105C2

SEAL KIT

Loader Control Valve Section

1шт.

70

85825473

SEAL KIT

Loader Control Valve Section

1шт.

71

84296791

SEAL KIT

Loader Control Valve Section

1шт.

Valid for 580N Model only

1шт.

72

84327674

KIT

Loader Control Valve Section

1шт.

73

76090109

KIT

Loader Control Valve Section

1шт.

Valid for 580SN, 580SN WT, 590SN Models only

1шт.

74

85821235

SEAL KIT

Loader Control Valve Section

1шт.

75

85821236

SEAL KIT

Loader Control Valve Section

1шт.

76

85819148

SEAL KIT,Between Control Valve Sections

Backhoe Control Valve Section

1шт.

77

85826345

KIT,Pressure Compensator

Backhoe Control Valve Section

1шт.

78

87455580

O-RING KIT

Backhoe Control Valve, Anti-Void Check Valve

1шт.

79

87534058

SEAL KIT

Steering Pump, Two Speed

1шт.

Valid for 580N, 580SN Models only

1шт.

80

84556599

SEAL KIT

Steering Cylinder, 4WD

1шт.

Valid for 580N Model only

1шт.

81

84330972

SEAL KIT

Steering Cylinder, 4WD

1шт.

Valid for 580SN Model only

1шт.

82

84331720

SEAL KIT

Steering Cylinder, 4WD

1шт.

Valid for 580SN WT, 590SN Models only

1шт.

83

1542879C1

SEAL KIT,63.5mm Rod x 88.9mm Bore

Backhoe Bucket Cylinder

1шт.

Valid for 580SN, 580SN WT, 590SN Models only

1шт.

84

84259224

SEAL KIT,57.2mm Rod x 82.6mm Bore

Backhoe Bucket Cylinder

1шт.

Valid for 580N Model only

1шт.

85

84259225

SEAL KIT,63.5mm Rod x 88.9mm Bore

Backhoe Bucket Cylinder

1шт.

Valid for 580SN, 580SN WT, 590SN Models only

1шт.

86

86982377

SEAL KIT

Clam Cylinder, 76.2mm x 44.5mm

1шт.

87

84259221

SEAL KIT,57.2mm Rod x 108.0mm Bore

Backhoe Dipper Cylinder

1шт.

Valid for 580N Model only

1шт.

88

84259222

SEAL KIT,63.5mm Rod x 120.70mm Bore

Backhoe Dipper Cylinder

1шт.

Valid for 580SN, 580SN WT Models only

1шт.

89

84259223

SEAL KIT,69.9mm Rod x 133.4mm Bore

Backhoe Dipper Cylinder

1шт.

Valid for 590SN Model only

1шт.

90

84259218

SEAL KIT,57.2mm Rod x 114.3mm Bore

Backhoe Boom Cylinder

1шт.

Valid for 580N Model only

1шт.

91

84259219

SEAL KIT,63.5mm Rod x 127.0mm Bore

Backhoe Boom Cylinder

1шт.

Valid for 580SN, 580SN WT Models only

1шт.

92

84259220

SEAL KIT,69.9mm Rod x 139.7mm Bore

Backhoe Boom Cylinder

1шт.

Valid for 590SN Model only

1шт.

93

84257788

SEAL KIT,38.1mm Rod x 76.2mm Bore

Dump Cylinder, Front

1шт.

Valid for 580N Model only

1шт.

94

84257772

SEAL KIT,38.1mm Rod x 76.2mm Bore

Dump Cylinder, Front

1шт.

Valid for 580SN, 580SN WT Models only

1шт.

95

84257323

SEAL KIT,44.4mm Rod x 82.6mm Bore

Dump Cylinder, Front

1шт.

Valid for 590SN Model only

1шт.

96

84257765

SEAL KIT,44.4mm Rod x 82.6mm Bore

Lift Cylinder

1шт.

Valid for 580N Model only

1шт.

97

84259226

SEAL KIT,57.2mm Rod x 108.0mm Bore

Stabilizer Cylinder

1шт.

Valid for 580N Model only

1шт.

98

84259227

SEAL KIT,57.2mm Rod x 114.3mm Bore

Stabilizer Cylinder

1шт.

Valid for 580SN Model only

1шт.

99

84259228

SEAL KIT,63.5mm Rod x 133.4mm Bore

Stabilizer Cylinder

1шт.

Valid for 580SN WT, 590SN Models only

1шт.

100

1542877C1

SEAL KIT,57.2mm Rod

Stabilizer Cylinder

1шт.

Valid for 580N, 580SN Models only

1шт.

101

84172816

SEAL KIT,50.8mm Rod, 95.3mm Bore

Swing Cylinder

1шт.

Valid for 580N Model only

1шт.

Выбрано товаров: 143
