(41.216.020) - FRONT AXLE, STEERING CYLINDER, 2WD

Запчасти Case 590SN (41.216.020) - FRONT AXLE, STEERING CYLINDER, 2WD (41) - STEERING

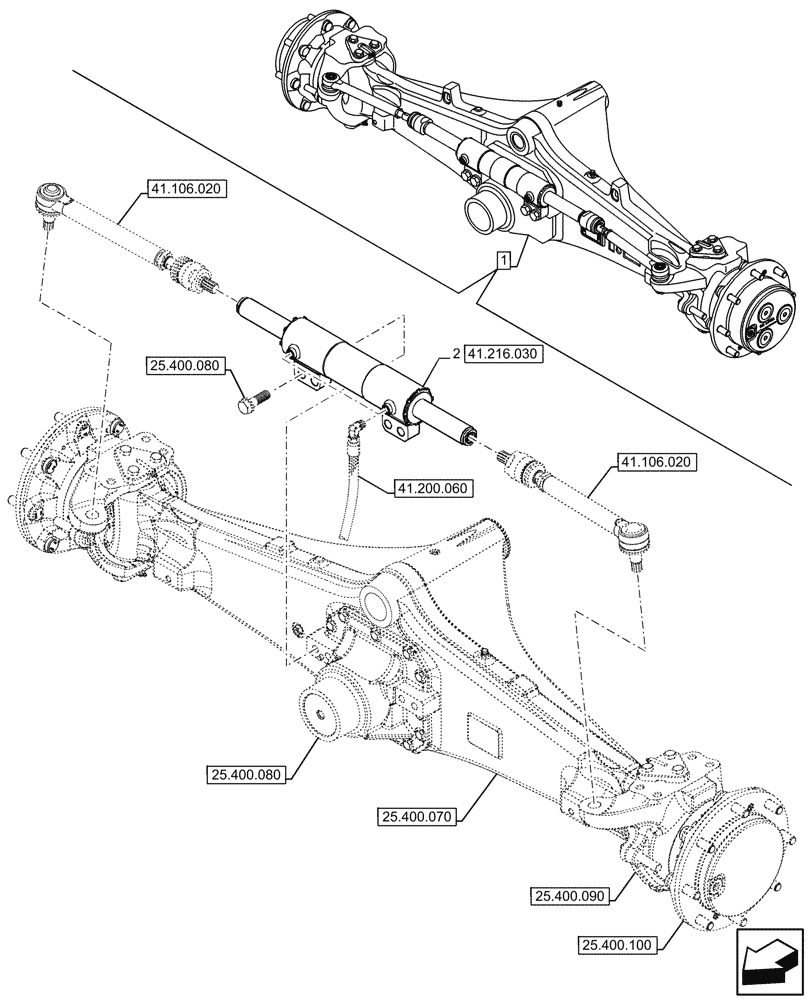

Схема запчастей Case 590SN - (41.216.020) - FRONT AXLE, STEERING CYLINDER, 2WD (41) - STEERING
25.400.080
2
1
41.200.060
41.216.030
25.400.090
41.106.020
41.106.020
25.400.070
25.400.100
25.400.080
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47559846

FRONT AXLE

PS1400 ACP, Grey, ASSY, Incl 2

1шт.

See also Front Axle Components in Figures 25.400.070, 25.400.080, 25.400.090, 25.400.100, 41.106.020

1шт.

2

84264406

STEERING CYLINDER,Double Acting, 40mm Rod, 70mm Bore, 249mm Stroke

ASSY

1шт.

Выбрано товаров: 3
