(41.106.020) - FRONT AXLE, STEERING TIE-ROD, 2WD

Запчасти Case 590SN (41.106.020) - FRONT AXLE, STEERING TIE-ROD, 2WD (41) - STEERING

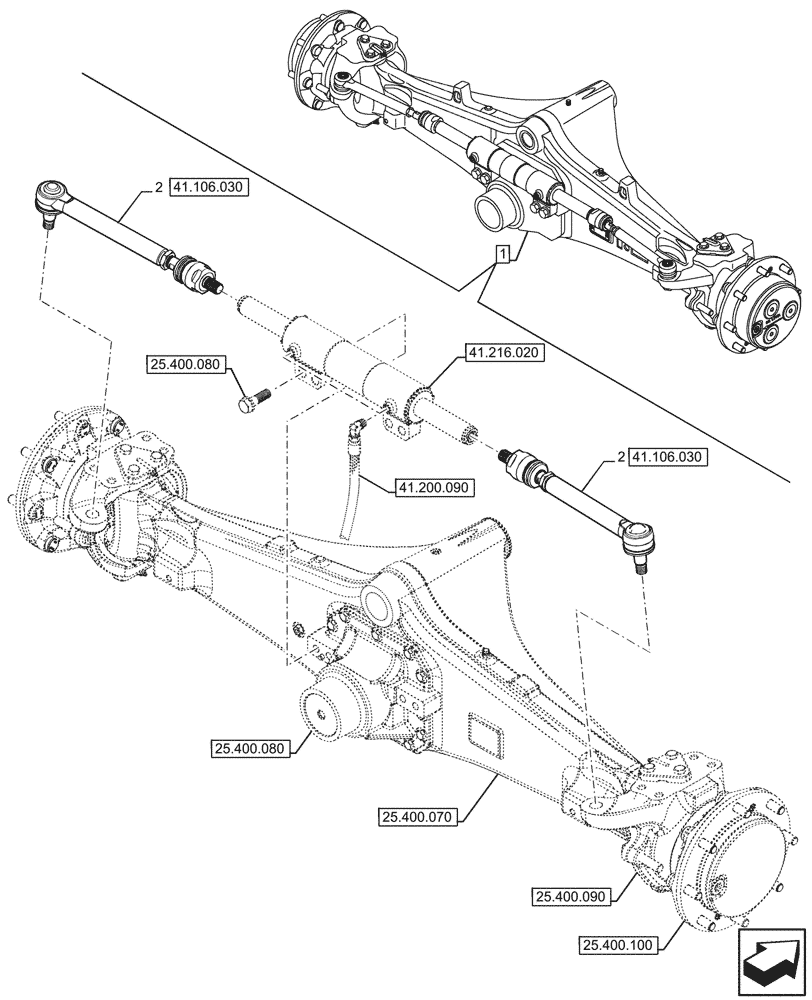

Схема запчастей Case 590SN - (41.106.020) - FRONT AXLE, STEERING TIE-ROD, 2WD (41) - STEERING
25.400.080
2
1
2
41.216.020
25.400.090
25.400.070
41.200.090
25.400.100
41.106.030
41.106.030
25.400.080
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47559846

FRONT AXLE

PS1400 ACP, Grey, ASSY, Incl 2

1шт.

See also Front Axle Components in Figures 25.400.070, 25.400.080, 25.400.090, 25.400.100, 41.216.020

1шт.

2

84264410

TIE-ROD,397mm L

ASSY

2шт.
