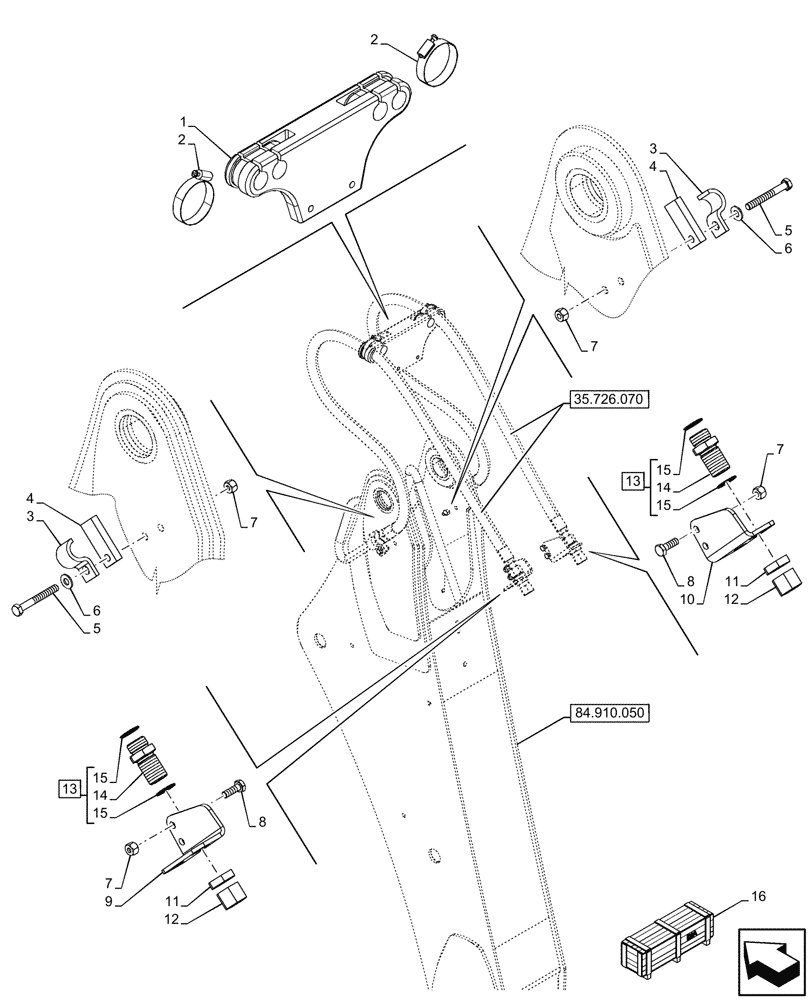

Запчасти Case 590SN (35.726.080) - EXTENDABLE DIPPER, AUXILIARY HYDRAULIC, W/ STANDARD CLIMATE (35) - HYDRAULIC SYSTEMS

1

84359766

SUPPORT

Hose Dual Auxiliary Hydraulic

1шт.

2

214-3156

HOSE CLAMP,2-3/4" - 3-5/8", HD Worm

2шт.

3

242459A1

SHIN

2шт.

4

84299978

PLATE

2шт.

5

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

2шт.

6

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

7

412141

NUT,M10 x 1.5, Cl 8

6шт.

8

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

4шт.

9

84305006

BRACKET

LH

1шт.

10

84305054

BRACKET

RH

1шт.

11

218-1249

BHD LOCK NUT,1-3/16" - 12

2шт.

12

201-907

CAP,1-3/16" - 12 ORFS

2шт.

13

201-140

HYD CONNECTOR,1-3/16" - 12, Blkhd, ORFS

ASSY, Incl 14, 15

2шт.

14

NSS

NOT SOLD SEPARAT

Connector, Incl in 13

2шт.

15

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

16

47359953

CONSTRUCTION DIA

Uni-Directional, Extendable Dipper, Pilot Control, Incl 1 - 15

1шт.

Valid for 590SN NRC Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

16

47501542

CONSTRUCTION DIA

No Auxiliary to Combo, Extendable Dipper, Pilot Control, Incl 1 - 15

1шт.

Valid for 590SN NRC Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

16

47945927

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Incl 1 - 15

1шт.

Valid for 590SN (Livery) NRC Model Only, W/ Mechanical Control and Extendable Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
