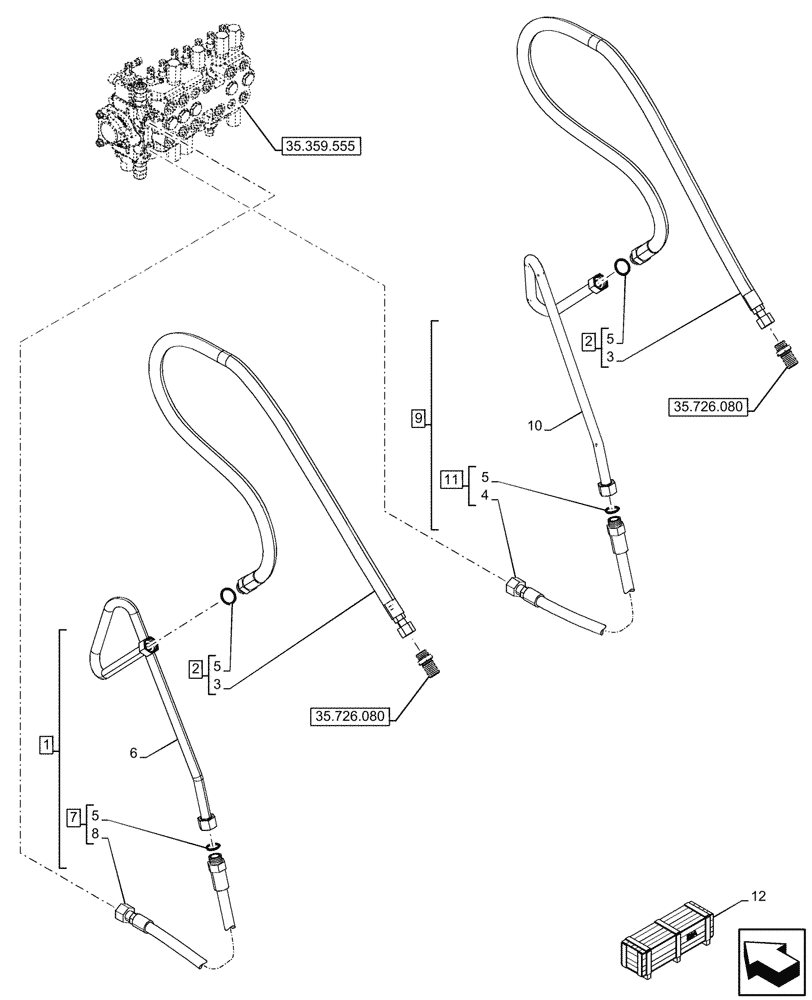

Запчасти Case 590SN (35.726.070) - EXTENDABLE DIPPER, AUXILIARY HYDRAULIC, W/ STANDARD CLIMATE (35) - HYDRAULIC SYSTEMS

1

84294434

HYD TUBE

ASSY, Auxiliary LH, Incl 2 (Qty 1), 3 (Qty 1), 5 (Qty 2), 6 - 8

1шт.

2

84299653

HOSE ASSY.,19mm ID x 2030mm L

Valve to Boom, Incl 3, 5 (Qty 2)

2шт.

3

NSS

NOT SOLD SEPARAT

Hose, Incl in 2

2шт.

4

NSS

NOT SOLD SEPARAT

Hose, Port A, Incl in 11

1шт.

5

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

3шт.

6

84343059

TUBE

Auxiliary LH

1шт.

7

84343947

HOSE,19mm ID x 2800mm L

ASSY, Valve to Boom Port B, Incl 5 (Qty 1), 8

1шт.

8

NSS

NOT SOLD SEPARAT

Hose, Port B, Incl in 7

1шт.

9

84294435

HYD TUBE

ASSY, Auxiliary RH, Incl 2 (Qty 1), 3 (Qty 1), 4, 10, 11

1шт.

10

84343077

TUBE

Auxiliary RH

1шт.

11

84343946

HOSE,19mm ID x 2795mm L

ASSY, Valve to Boom Port A, Incl 4, 5

1шт.

12

47359953

CONSTRUCTION DIA

Uni-Directional, Extendable Dipper, Pilot Control, Incl 2 - 8, 10, 11

1шт.

Valid for 590SN NRC Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

12

47501542

CONSTRUCTION DIA

No Auxiliary to Combo, Extendable Dipper, Pilot Control, Incl 2 - 8, 10, 11

1шт.

Valid for 590SN NRC Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

12

84546992

CONSTRUCTION DIA

Uni-Directional, Incl 2 - 8, 10, 11

1шт.

Valid for 590SN (Livery) NRC Model Only, W/ Mechanical Control and Extendable Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

12

47945927

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Incl 2 - 8, 10, 11

1шт.

Valid for 590SN (Livery) NRC Model Only, W/ Mechanical Control and Extendable Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
