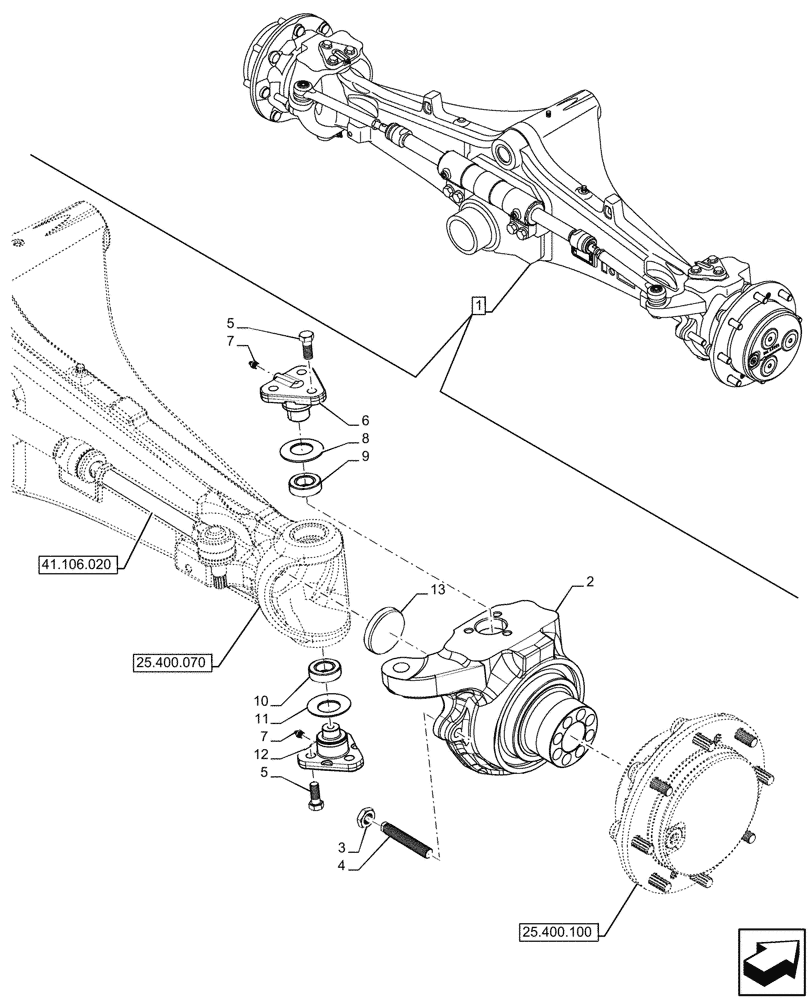

Запчасти Case 590SN (25.400.090) - FRONT AXLE, STEERING KNUCKLE, 2WD (25) - FRONT AXLE SYSTEM

1

47559846

FRONT AXLE

PS1400 ACP, Grey, ASSY, Incl 2 - 13

1шт.

See also Front Axle Components in Figures 25.400.070, 25.400.080, 25.400.100, 41.106.020, 41.216.020

1шт.

2

47724322

STEERING KNUCKLE

RH

1шт.

2

47724321

STEERING KNUCKLE

LH

1шт.

3

47361877

NUT,Hex, Thin, M18 x 2.5, Cl. 5

1шт.

4

87751873

SCREW,M18 x 105mm, Cl 10.9

Limitation Steering

1шт.

5

84273740

BOLT,Hex, M14 x 35mm, Cl 10.9

6шт.

6

84259754

PIN,49.9mm OD x 48mm L

King Steering Knuckle Top

1шт.

7

84351730

FITTING,M10 x 1

2шт.

8

84241623

SPRING,Belleville, 36.13mm ID x 70.85mm OD x 2.26mm Thk

1шт.

9

84241615

GROOVED BUSHING,35mm ID x 52mm OD x 20mm L

1шт.

10

87523063

SPHERICAL BEARING,28mm ID x 52mm OD x 16mm W

2шт.

11

84241624

SPRING,Belleville, 47.63mm ID x 69.85mm OD x 0.97mm Thk

1шт.

12

84259753

PIN,49.9mm OD x 45mm L

King Steering Knuckle Bottom

1шт.

13

84211247

PLUG

1шт.
