1
47559840

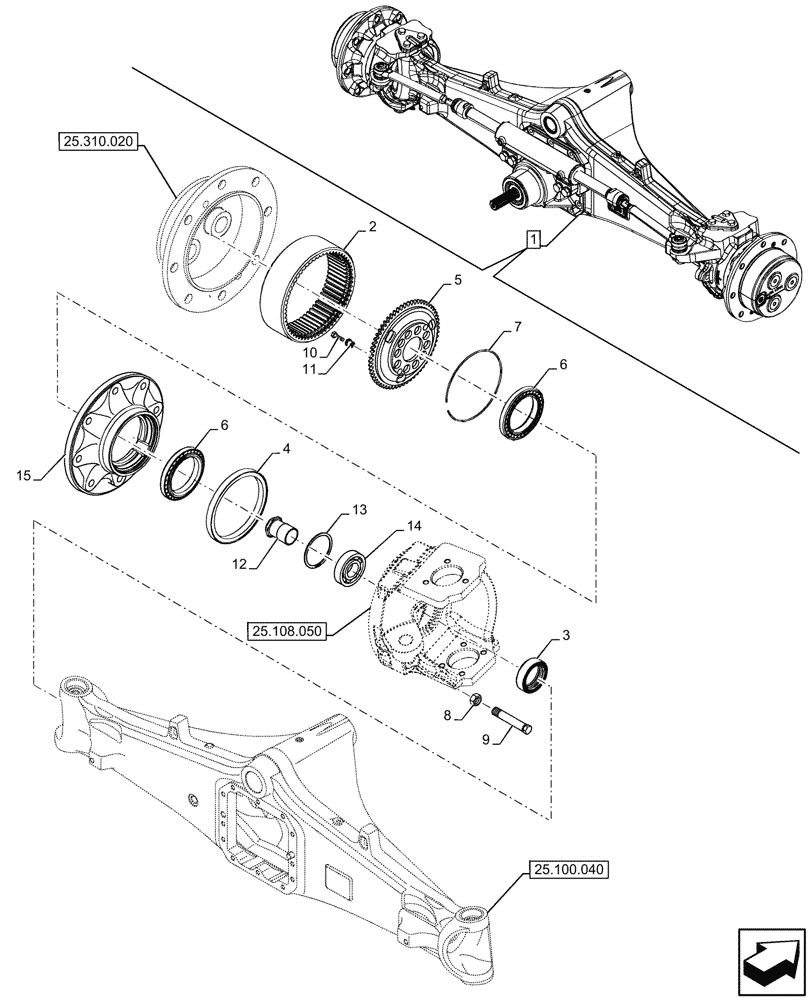

FRONT AXLE
ASSY, Grey, PS1428 ACP, 12.8-1, GR, Incl 2 - 15
1шт.
See also Front Axle Components in Figures 25.100.050, 25.100.060, 25.102.030, 25.102.040, 25.108.050, 25.108.070, 25.108.080, 25.310.020, 41.106.050, 41.216.050
1шт.
2
87748929
RING GEAR,60T
1шт.
3
84264324
SEAL,53.2mm ID x 78mm OD x 14mm Thk
Oil Cartridge
1шт.
4
87349641
OIL SEAL,150mm ID x 180mm OD x 14.5/16mm Thk
1шт.
5
84259703
GEAR,60T
Support
1шт.
6
47724311
TAPERED BEARING,109.5mm ID x 158.7mm OD x 23mm L
2шт.
7
5165162
SNAP RING,M50, Int
1шт.
8
47361877
NUT,Hex, Thin, M18 x 2.5, Cl. 5
1шт.
9
87751873
SCREW,M18 x 105mm, Cl 10.9
Limitation Steering
1шт.
10
84273747
LOCK BOLT,Hex, M12 x 1.75 x 45mm, LH Thd
8шт.
11
84252637
SLEEVE,12.55mm ID x 20.080mm OD x 25mm Thk
T-Dowel
8шт.
12
84316956
NUT,M45 x 1.5, 88.5mm L
Stake
1шт.
13
84270868
CIRCLIP,75 PHC
Internal HVY
1шт.
14
84262394
BALL BEARING,45mm ID x 75mm OD x 16mm W
1шт.
15
47570583
HUB
Drive
1шт.
