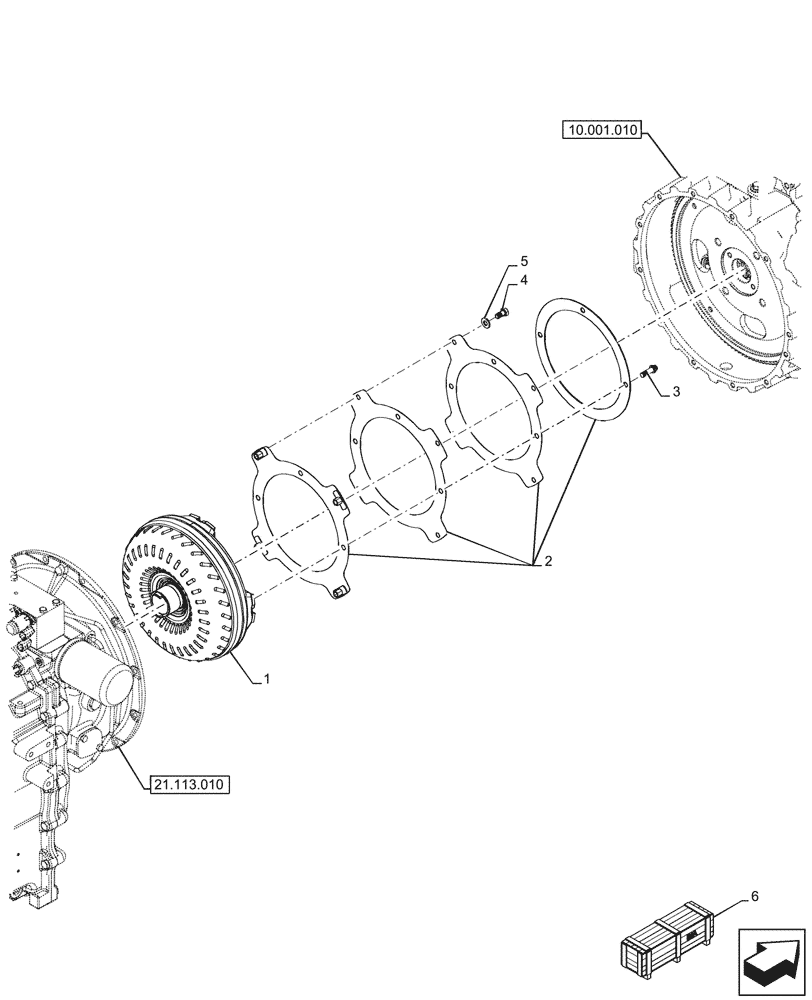

Запчасти Case 590SN (21.700.050) - VAR - 423062 - TRANSMISSION, POWERSHIFT, COMPONENTS, TORQUE CONVERTER, 4WD (21) - TRANSMISSION

1

87702193

CONVERTER

Torque

1шт.

2

47442982

KIT

Flex Plate

1шт.

3

14420231

HEX SOC SCREW,M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

4

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

5

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

6

47411176

CONSTRUCTION DIA

Torque Converter, Incl 1

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
