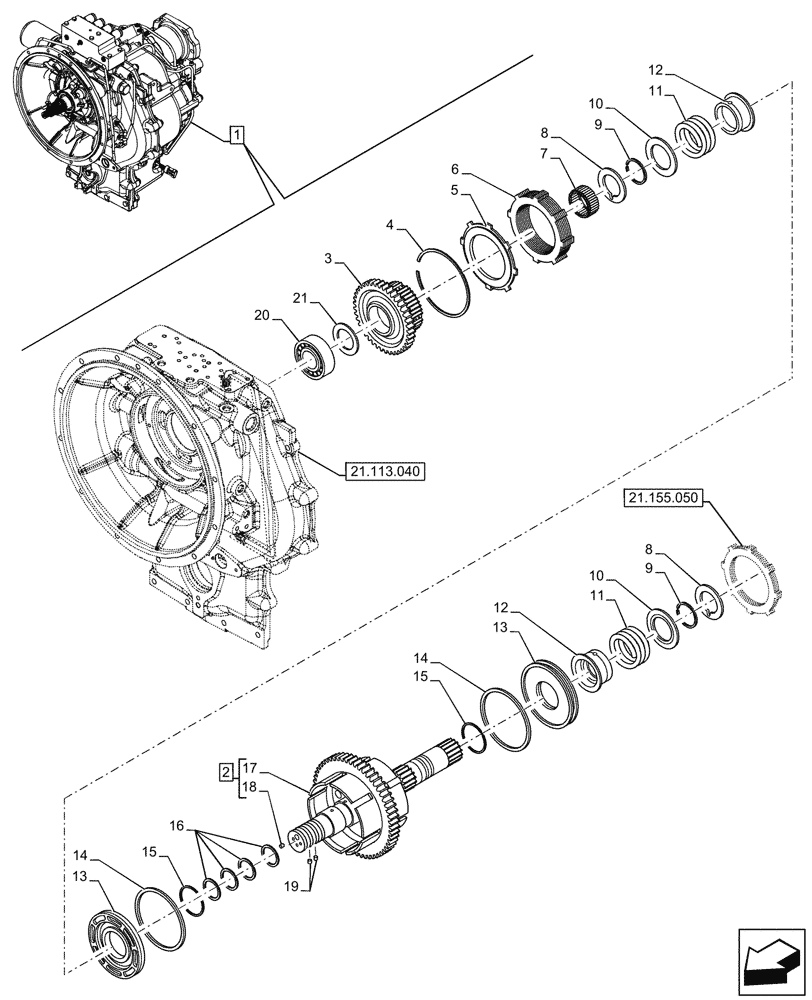

Запчасти Case 590SN (21.155.040) - VAR - 423062 - TRANSMISSION, POWERSHIFT, COMPONENTS, DRIVE SHAFT, 4WD (21) - TRANSMISSION

1

87567534

TRANSMISSION

ASSY, TLB 2, Powershift, Incl 2 - 21

1шт.

See also Transmission Components in Figures 21.105.020, 21.105.030, 21.113.030, 21.113.040, 21.155.010, 21.155.020, 21.155.030, 21.155.050, 21.155.060, 33.110.050, 55.020.030, 55.022.060, 55.024.070, 55.024.110, 55.031.090, 55.031.100

1шт.

2

87705476

SHAFT,60T

ASSY, Incl 17, 18

1шт.

3

87705470

GEAR,44T

Powershift Transmission

1шт.

4

181116A1

RING, LOCKING,146.6mm ID x 2.5mm Thk

1шт.

5

310519A1

PLATE

1шт.

6

87705465

CLUTCH OVERHAUL KIT

2nd Speed, 3rd Speed

1шт.

7

358633A1

BEARING, NEEDLE,50mm ID x 58mm OD x 25mm W

1шт.

8

358640A1

WASHER

2шт.

9

181111A1

RING, LOCKING,47.8mm ID x 1.5mm Thk

2шт.

10

181161A1

PLATE, THRUST

2шт.

11

358637A1

SPRING

Piston, Return

2шт.

12

358641A1

TRANSMISSION SLEEVE

2шт.

13

358644A1

PISTON

Clutch

2шт.

14

358643A1

SEALING RING,126.83mm ID x 137mm OD x 3.25mm Thk

2шт.

15

358642A1

SEALING RING

2шт.

16

358645A1

SEALING RING

4шт.

17

NSS

NOT SOLD SEPARAT

Shaft, Incl in 2

1шт.

18

87701779

RIVET,7mm OD

3шт.

19

181108A1

SPLIT PIN,3mm OD x 8mm L

2шт.

20

181126A1

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

1шт.

21

358639A1

WASHER

1шт.
