(21.154.080) - VAR - 423059 - TRANSMISSION, POWERSHUTTLE, COMPONENTS, PTO, INPUT SHAFT, 4WD

Запчасти Case 590SN (21.154.080) - VAR - 423059 - TRANSMISSION, POWERSHUTTLE, COMPONENTS, PTO, INPUT SHAFT, 4WD (21) - TRANSMISSION

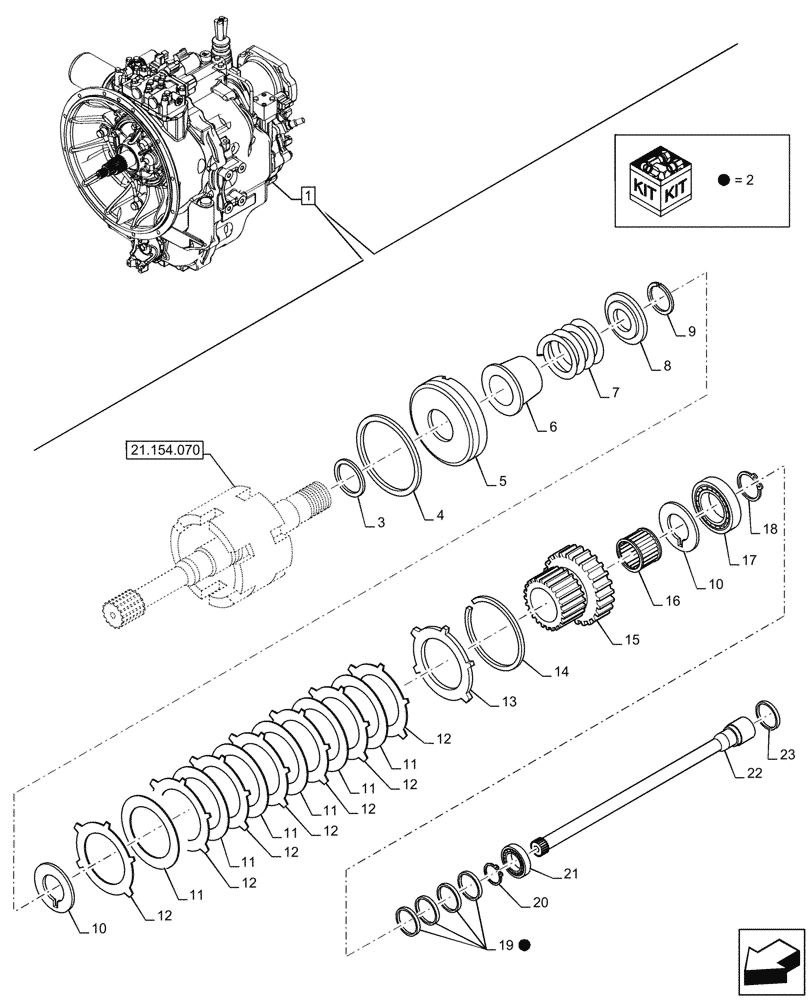

Схема запчастей Case 590SN - (21.154.080) - VAR - 423059 - TRANSMISSION, POWERSHUTTLE, COMPONENTS, PTO, INPUT SHAFT, 4WD (21) - TRANSMISSION
21.154.070
18
11
12
9
12
12
11
7
23
21
20
15
1
12
4
11
12
11
12
11
2
8
13
17
6
12
14
10
19
10
3
11
16
5
22
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87395301

TRANSMISSION

ASSY, TLB 1 Up with SAHR, Incl 2 - 23

1шт.

See also Transmission Components in Figures 21.104.040, 21.112.060, 21.112.080, 21.134.050, 21.134.060, 21.134.070, 21.154.070, 21.154.090, 21.154.100, 21.154.110, 21.154.120, 21.154.130, 33.110.020, 55.024.040, 55.031.030, 55.031.040

1шт.

2

87525849

REPAIR KIT

ASSY, Input Shaft, Incl 19

1шт.

See also Repair Kit Components in Figure 21.154.070

1шт.

3

358642A1

SEALING RING

1шт.

4

358643A1

SEALING RING,126.83mm ID x 137mm OD x 3.25mm Thk

1шт.

5

358644A1

PISTON

Clutch

1шт.

6

358641A1

TRANSMISSION SLEEVE

1шт.

7

358637A1

SPRING

Piston, Return

1шт.

8

181161A1

PLATE, THRUST

1шт.

9

181111A1

RING, LOCKING,47.8mm ID x 1.5mm Thk

1шт.

10

358640A1

WASHER

2шт.

11

181158A1

CLUTCH DISC

6шт.

12

181159A1

DISC

7шт.

13

310519A1

PLATE

1шт.

14

181116A1

RING, LOCKING,146.6mm ID x 2.5mm Thk

1шт.

15

358638A1

PINION,39T

Forward

1шт.

16

358633A1

BEARING, NEEDLE,50mm ID x 58mm OD x 25mm W

1шт.

17

ST264

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

1шт.

18

800-1150

SNAP RING,M50, Ext

1шт.

19

87429984

RING

4шт.

20

800-1130

SNAP RING,M30, Ext

1шт.

21

87429983

BALL BEARING,30mm ID x 55mm OD x 13mm W

1шт.

22

87705460

PTO SHAFT

Powershuttle Transmission

1шт.

23

358645A1

SEALING RING

2шт.
