(21.134.120) - POWERSHUTTLE TRANSMISSION, KNOB, W/ DELUXE CANOPY, W/ CAB

Запчасти Case 590SN (21.134.120) - POWERSHUTTLE TRANSMISSION, KNOB, W/ DELUXE CANOPY, W/ CAB (21) - TRANSMISSION

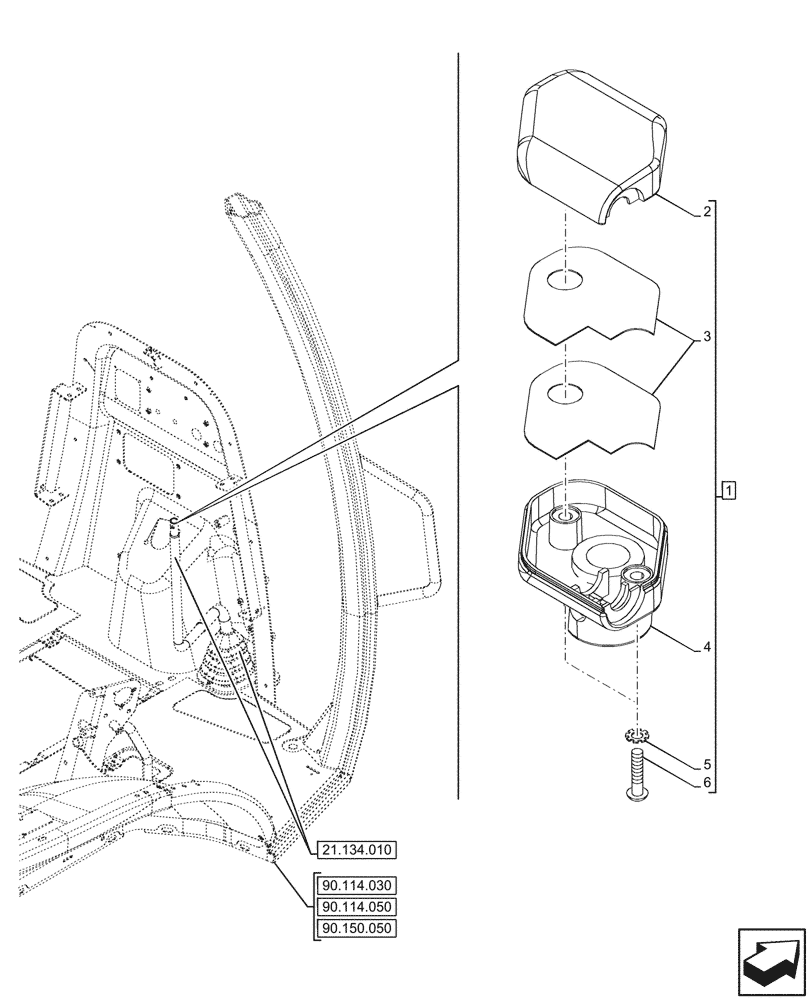

Схема запчастей Case 590SN - (21.134.120) - POWERSHUTTLE TRANSMISSION, KNOB, W/ DELUXE CANOPY, W/ CAB (21) - TRANSMISSION
90.150.050
1
6
3
5
2
4
21.134.010
90.114.050
90.114.030
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

309747A1

KNOB

ASSY, Noise Reduction, Incl 2 - 6

1шт.

2

187714A1

KNOB

1шт.

3

NSS

NOT SOLD SEPARAT

Paper Shift Handle, Incl in 1

2шт.

4

187715A1

KNOB

1шт.

5

493-41020

LOCK WASHER,Ext Tooth, #10

2шт.

6

87020181

SCREW,Phillips Drive, Pan HD, #10 - 32 x 7/8"

2шт.
