Запчасти Case 590SN (21.113.040) - VAR - 423062 - TRANSMISSION, POWERSHIFT, COMPONENTS, HOUSING, 4WD (21) - TRANSMISSION

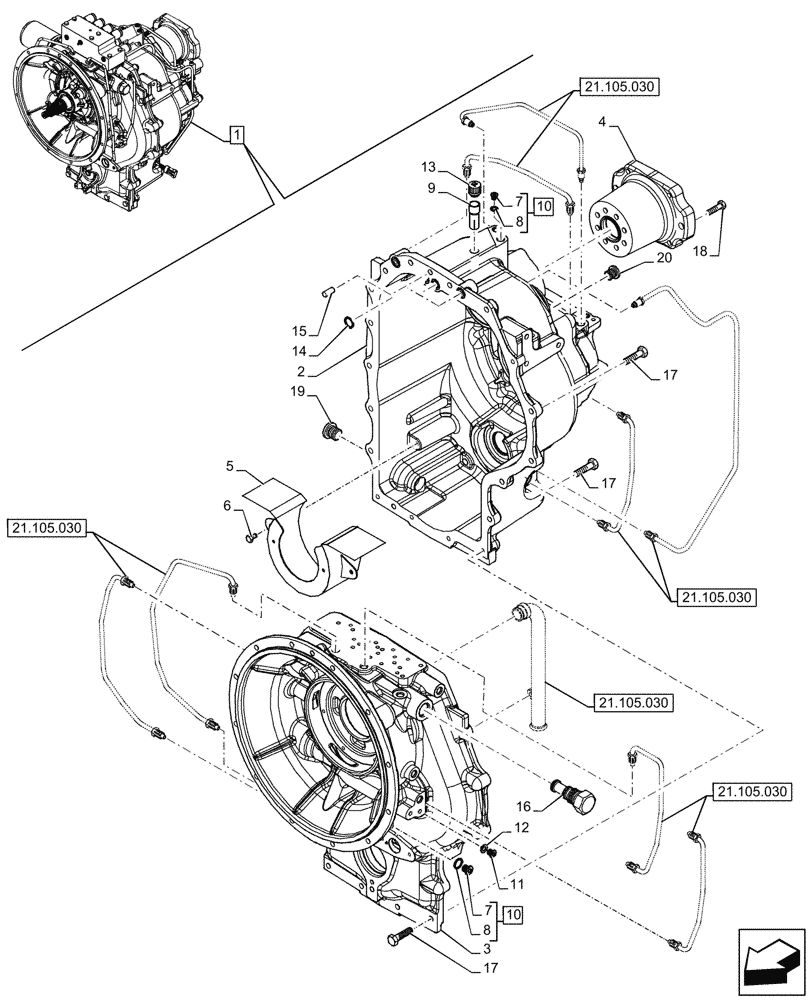

Схема запчастей Case 590SN - (21.113.040) - VAR - 423062 - TRANSMISSION, POWERSHIFT, COMPONENTS, HOUSING, 4WD (21) - TRANSMISSION
21.105.030
10
16
7
8
8
13
17
2
18
5
9
4
14
12
19
1
17
17
7
11
10
6
20
15
3
21.105.030
21.105.030
21.105.030
21.105.030

Артикул

Название

Примечание

Количество

1

87567534

TRANSMISSION

ASSY, TLB 2, Powershift, Incl 2 - 19

1шт.

See also Transmission Components in Figures 21.105.020, 21.105.030, 21.113.030, 21.155.010, 21.155.020, 21.155.030, 21.155.040, 21.155.050, 21.155.060, 33.110.050, 55.020.030, 55.022.060, 55.024.070, 55.024.110, 55.031.090, 55.031.100

1шт.

2

87705453

TRANSMISSION HOUSING

Rear

1шт.

3

87705437

TRANSMISSION HOUSING

Front

1шт.

4

87701269

FLANGE

Transmission, PTO

1шт.

5

87705445

BRACKET

Powershift Transmission, Protection

1шт.

6

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

7

NSS

NOT SOLD SEPARAT

Plug, Incl in 10

3шт.

8

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

9

310772A1

VENTILATION PIPE,18 mm OD, 42 mm Length

Oil Breather

1шт.

10

9625178

PLUG,9/16" - 18 ORB

ASSY, Incl 7, 8

3шт.

11

181100A1

PLUG,1/8 CAS x 8

5шт.

12

934667R1

SEALING RING,M10 x 14 x 1

5шт.

13

1530028C1

BREATHER

1шт.

14

181141A1

O-RING,17.12mm ID x 2.62mm Width

3шт.

15

K260177

PIN

2шт.

16

87705439

VALVE

Powershift Transmission

1шт.

17

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

18шт.

18

87705895

BOLT,TCEI, M10 x 25mm, Cl 8.8

7шт.

19

100557A1

PLUG, DRAIN,M30 x 2

1шт.

20

353-279

PLUG,7/8" - 14 ORB

2шт.

Выбрано товаров: 21
