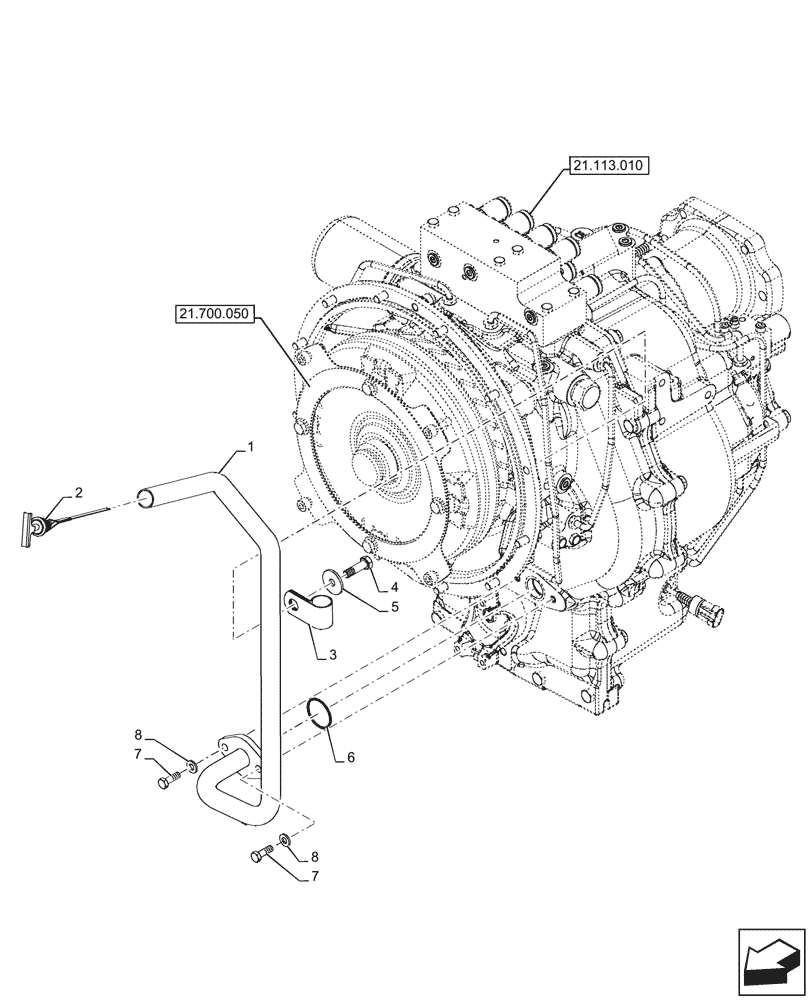

Запчасти Case 590SN (21.113.020) - VAR - 423062 - TRANSMISSION, POWERSHIFT, DIPSTICK, 4WD (21) - TRANSMISSION

1

84329368

TUBE

Dipstick, Powershift Transmission

1шт.

2

87601345

DIPSTICK,824mm L

Transmission Oil

1шт.

3

D35908

CLAMP,1" Clamping pipe

1шт.

4

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

1шт.

5

87687101

WASHER,10.65mm ID x 31mm OD x 3.3mm Thk

1шт.

6

272218

O-RING,0.103" Thk x 1.424" ID, -127, Cl 5, 75 Duro

1шт.

7

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

8

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

2шт.
