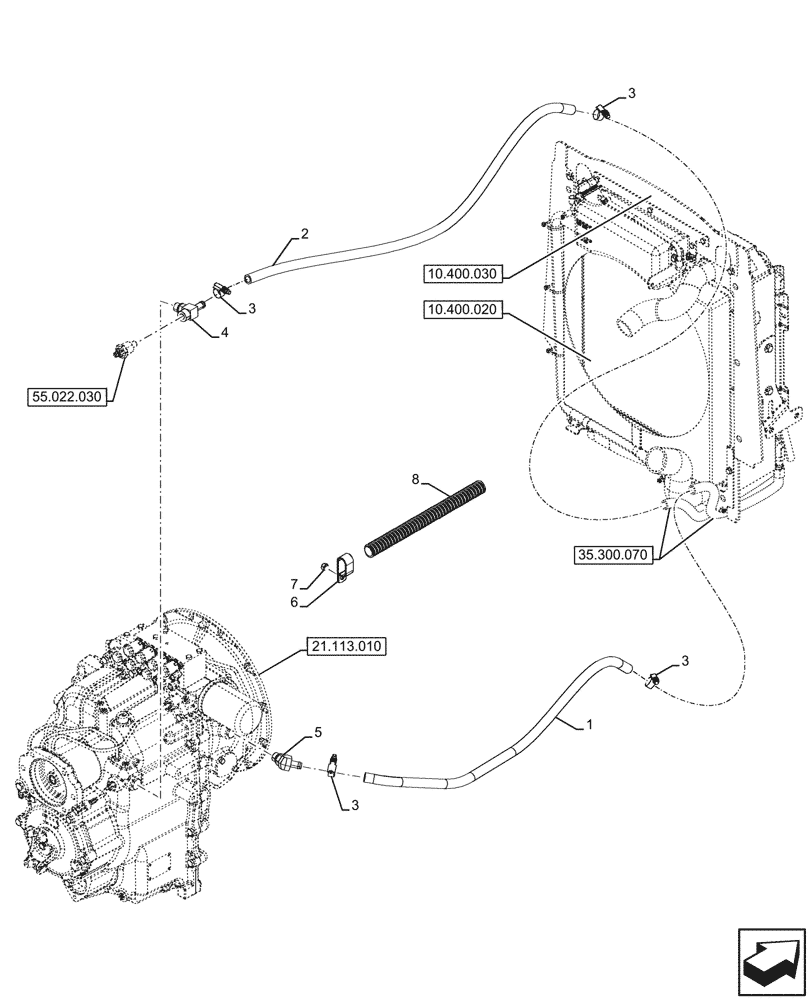

Запчасти Case 590SN (21.105.010) - VAR - 423062 - TRANSMISSION, POWERSHIFT, OIL COOLER LINE, 4WD (21) - TRANSMISSION

1

87422597

HOSE,15.88mm ID x 975mm L, SAE 100R6

Transmission Cooler Fill

1шт.

2

87422598

HOSE,15.88mm ID x 1225mm L, SAE 100R6

Transmission Cooler Return

1шт.

3

328186A1

HOSE CLAMP,400mm L

400mm

4шт.

4

87721671

TEE,1/2"-14 x 7/8"-14 ORB x 5/8 Hose

1шт.

5

217-314

FITTING,45 Degree Elbow, 5/8" Hose Barb x 7/8" - 14 Male ORB

1шт.

6

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

1шт.

7

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

8

D132982

PADDLE,26.87mm ID x 400mm L

1шт.
