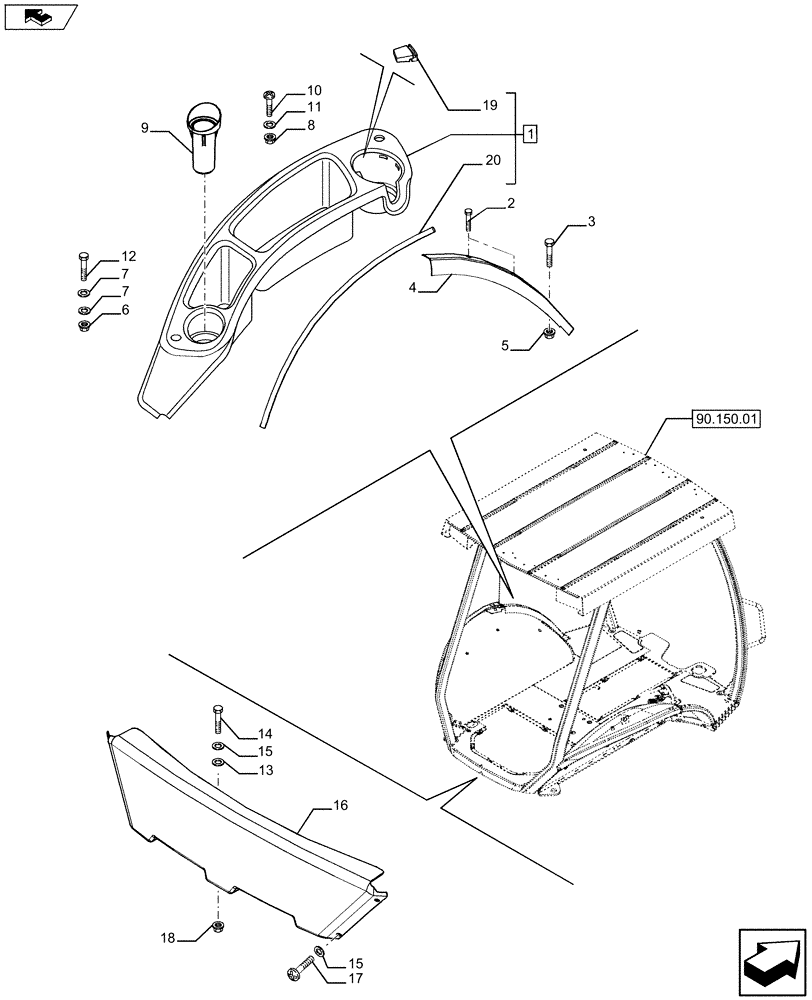

Запчасти Case 580SN WT (90.160.09) - VAR - 423000, 442082 - CANOPY, ROPS - FRAME, COVERS, MIRROR, VISOR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

86992243

TRAY

Assy, Incl 19 - 20

1шт.

2

87534992

SELF-TAP SCREW,Pan Head, M10 x 28mm

2шт.

3

87310126

SCREW,Phillips Drive, Pan HD, #10 - 24 x 3/4", SST

1шт.

4

397025A2

TRIM

1шт.

5

131-869

SPRING NUT,Ret, J, #10-24

3шт.

6

231-14109

LOCK NUT,#10-24, GB

2шт.

7

87310146

WASHER,5.16mm ID x 19.05mm OD x 1.55mm Thk

4шт.

8

833-40406

NUT,M6, U

4шт.

9

378742A3

INSERT

1шт.

10

87310098

BOLT,M6 x 20 Full SST BLO

2шт.

11

87310186

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

12

87310127

SCREW,Pan HD, #10 - 24 x 1", SST

2шт.

13

87310185

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

14

87310154

BOLT,Hex, M6 x 25, Cl. 8.8

1шт.

15

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

16

86992977

PANEL

1шт.

17

781-24820

SELF-TAP SCREW,Hex Flg, M8 x 1.25 x 20mm

4шт.

18

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

19

86992284

BUMPER,40-50 Durometer

4шт.

20

400077A1

PROTECTION STRIP,1300mm

1шт.
