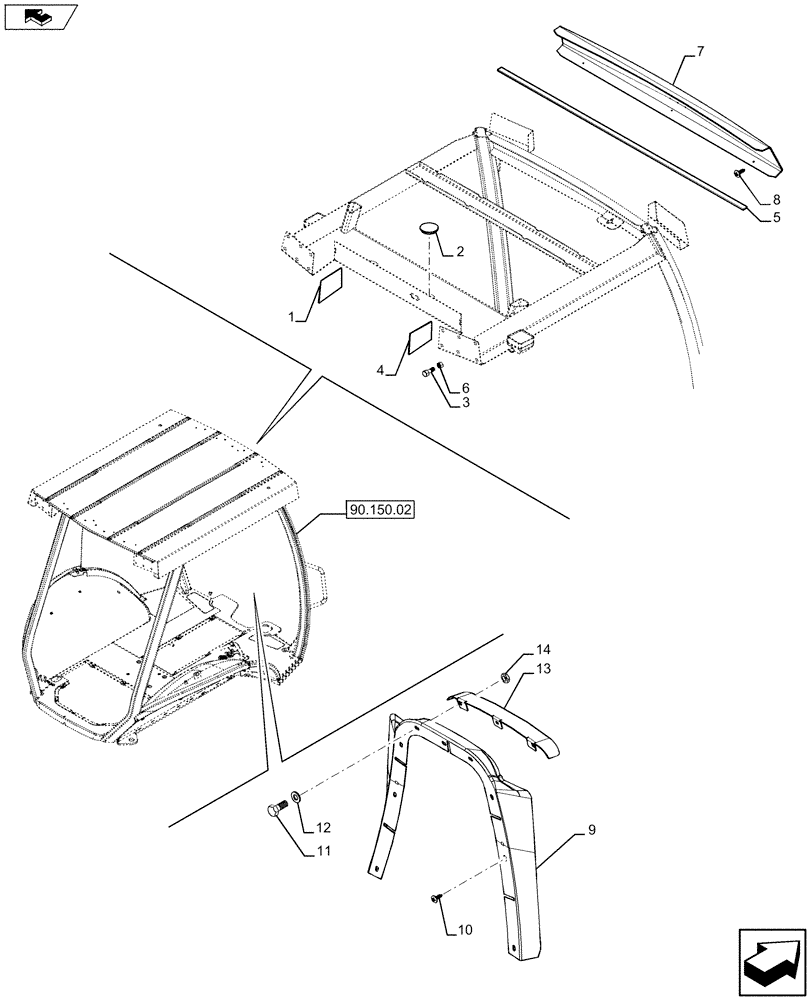

Запчасти Case 580SN WT (90.160.0701) - VAR - 423000, 442082 - CANOPY, ROPS - FRAME, COVERS, MIRROR, VISOR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84286660

COVER

1шт.

2

D93716

PLUG,73.mm ID x 88.9mm OD

2шт.

3

87310098

BOLT,M6 x 20 Full SST BLO

4шт.

4

84286659

COVER

1шт.

5

385506A1

PROTECTION STRIP

1шт.

6

833-40406

NUT,M6, U

4шт.

7

367712A3

COVER

1шт.

8

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

5шт.

9

396938A3

MOLDING

1шт.

10

D143242

PLUG,7.1mm Dia Shank x 25.4mm OD Head x 23.1mm L

9шт.

11

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

3шт.

12

495-81001

WASHER,5/16"

3шт.

13

395478A3

BRACKET

1шт.

14

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.
