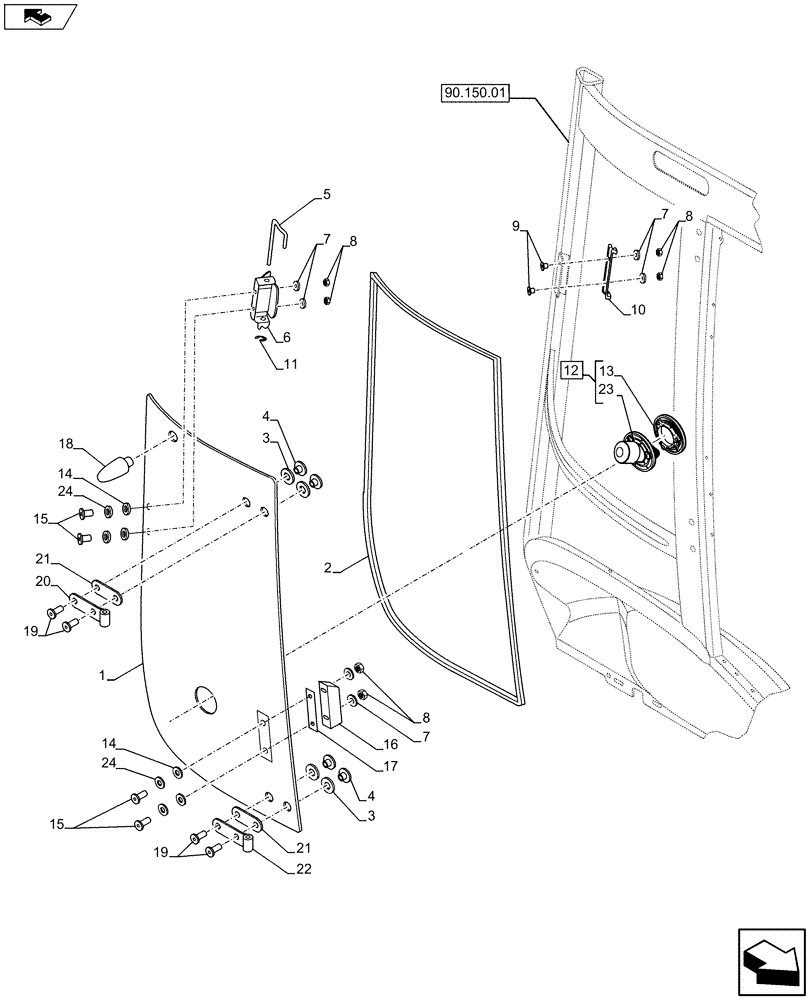

Запчасти Case 580SN WT (90.156.03) - VAR - 747853, 747854, 747855 - CAB - RIGHT WINDOW (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84339225

CAB GLASS ASSY

1шт.

2

84497746

RUBBER SEAL,2928mm L

1шт.

3

83961985

SPACER,12.6mm ID x 18mm OD x 6.5mm L

4шт.

4

84249588

SPECIAL NUT,M8 x 1.25

4шт.

5

87534372

ROD,7.9mm OD

1шт.

6

87344860

HANDLE

1шт.

7

195-81023

WASHER,5.94mm ID x 14.28mm OD x 1.25mm Thk

6шт.

8

F45165

SPECIAL NUT,#10-24

6шт.

9

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

2шт.

10

87344859

LATCH

1шт.

11

87534717

PUSH-ON NUT,0.625" L

1шт.

12

84403979

LATCH

Assy, Incl 13, 23

1шт.

13

84355909

RING,85.3mm OD, 44mm ID

1шт.

14

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

4шт.

15

47499504

SCREW,Oval HD 10 - 24 x .875"

4шт.

16

97399C1

HANDLE

1шт.

17

R54047

PAD,30mm OD x 0.76mm Thk

1шт.

18

84224398

BUMPER,6D Durometer EPDM Black

1шт.

19

84319919

SCREW,Hex, M8 x 1.25 x 14mm, Cl 10.9

M8x14

4шт.

20

84282077

HINGE

Upper

1шт.

21

84224336

SHIM,35mm OD x 5mm Thk

2шт.

22

84282081

HINGE

Lower

1шт.

23

NSS

NOT SOLD SEPARAT

Latch, Incl in 12

1шт.

24

47499507

SEALING WASHER,8.9mm ID x 15.9mm OD x 2.38mm Thk

4шт.
