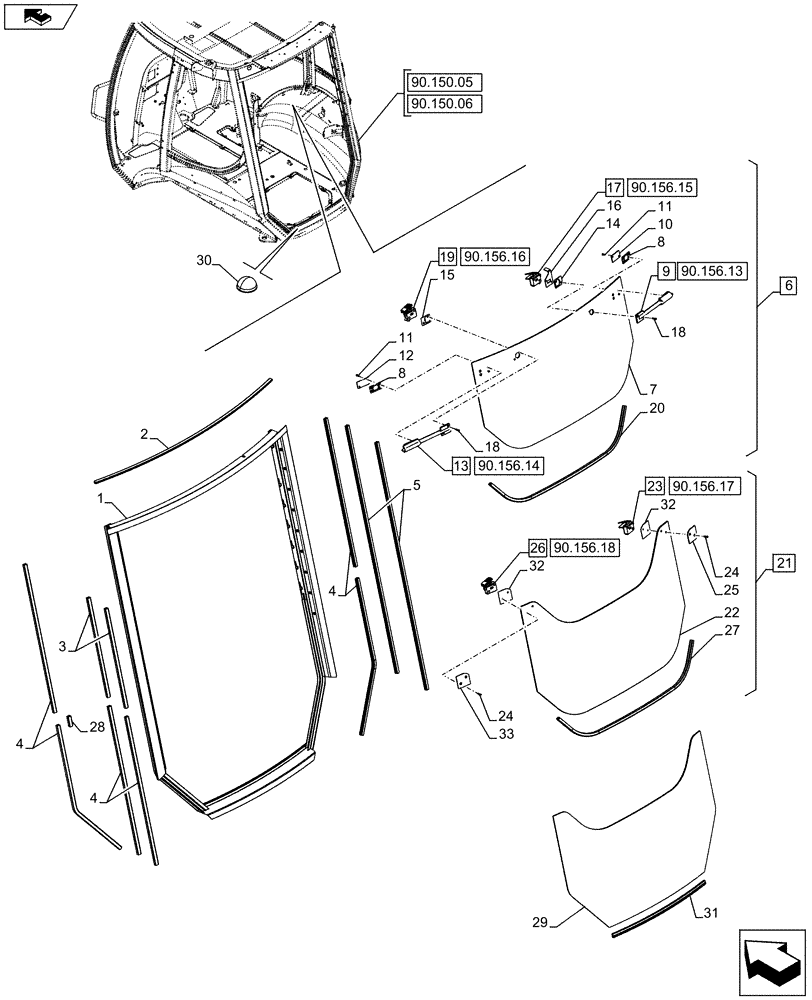

Запчасти Case 580SN WT (90.156.02) - VAR - 747853, 747854, 747855 - CAB - WINDOW, REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87435929

WINDOW FRAME

1шт.

2

400494A1

SEAL,1095mm L

1шт.

3

404229A1

SEAL,510mm L

2шт.

4

404228A1

SEAL,760mm L

6шт.

5

404227A1

SEAL,1270mm L

2шт.

6

87753180

WINDOW

Assy, Incl 7 - 20

1шт.

7

352208A1

GLASS,CAB

Upper

1шт.

8

402843A1

PLATE

2шт.

9

411910A1

LATCH

Assy, See 90.156.13

1шт.

RH - Determine from Seat facing Radiator

1шт.

10

87423503

BACK PLATE

1шт.

11

87445051

HEX SOC SCREW,Flat Hd, Csk, M5 x 16mm, Gr 8.8, Prev Torque

4шт.

12

87423502

BACK PLATE

1шт.

13

411911A1

LATCH

Assy, See 90.156.14

1шт.

LH - Determine from Seat facing Radiator

1шт.

14

402844A1

PLATE

1шт.

15

402845A1

PLATE

1шт.

16

402836A1

BRACKET

1шт.

17

411914A1

LATCH

Assy, See 90.156.15

1шт.

18

87435453

HEX SOC SCREW,FLAT, M5 x 0.8 x 25mm

4шт.

19

411912A1

LATCH

Assy, See 90.156.16

1шт.

20

395348A1

SEALING STRIP

1шт.

21

87434783

WINDOW ASSY

Assy, Incl 22 - 26, 28

1шт.

No Longer Includes Ref 27

1шт.

22

352209A1

GLASS,CAB

Middle

1шт.

23

411909A1

LATCH

Assy, See 90.156.17

1шт.

24

87435453

HEX SOC SCREW,FLAT, M5 x 0.8 x 25mm

4шт.

25

87426969

BACKING PLATE

1шт.

26

411908A1

LATCH

Assy, See 90.156.18

1шт.

27

395348A1

SEALING STRIP

1шт.

28

400200A1

RUBBER BLOCK,25mm L

1шт.

29

352210A1

GLASS,CAB

Lower

1шт.

30

87753220

BUMPER,19mm D

3шт.

31

87753118

GROMMET,4mm L, 695mm L

1шт.

32

87426963

PLATE

2шт.

33

87426964

PLATE

1шт.
