(90.151.02) - VAR - X05105X - SEAT, BELT

Запчасти Case 580SN WT (90.151.02) - VAR - X05105X - SEAT, BELT (90) - PLATFORM, CAB, BODYWORK AND DECALS

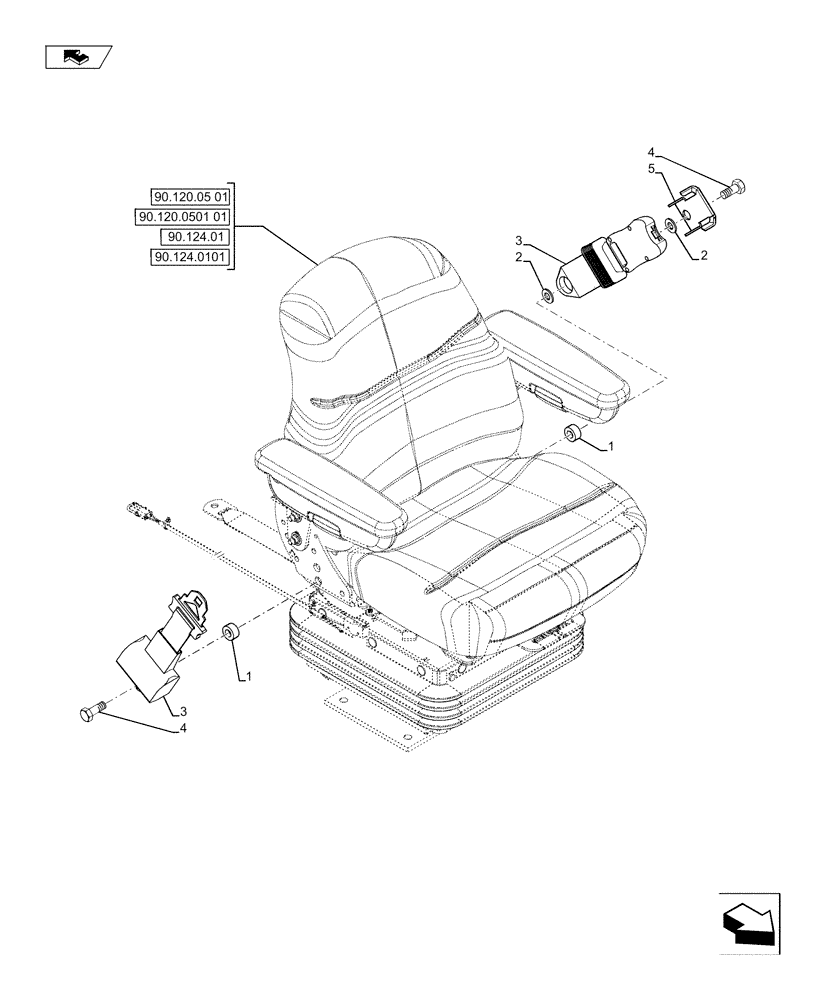

Схема запчастей Case 580SN WT - (90.151.02) - VAR - X05105X - SEAT, BELT (90) - PLATFORM, CAB, BODYWORK AND DECALS
home
90.120.05 01
4
5
1
90.120.0501 01
3
2
2
90.124.0101
4
90.124.01
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87311572

SPACER,12.7mm x 19mm x 9mm

2шт.

2

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

2шт.

3

84425027

SEAT BELT,50.8mm W x 1219.2mm L

1шт.

4

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

2шт.

5

87310149

BRACKET

1шт.

Выбрано товаров: 5
