(90.151.01) - VAR - 747735 - SEAT, BELT

Запчасти Case 580SN WT (90.151.01) - VAR - 747735 - SEAT, BELT (90) - PLATFORM, CAB, BODYWORK AND DECALS

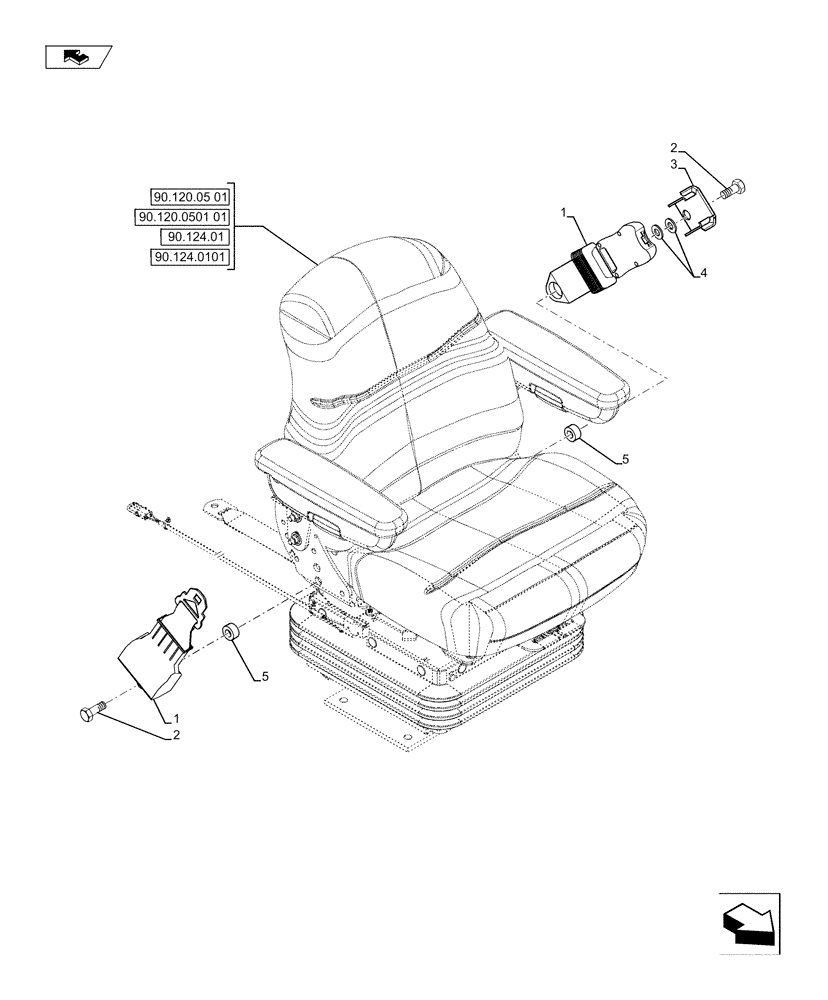

Схема запчастей Case 580SN WT - (90.151.01) - VAR - 747735 - SEAT, BELT (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
90.124.0101
90.120.05 01
2
1
4
90.124.01
2
home
3
5
5
90.120.0501 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84425028

SEAT BELT,3 inch Wide Belt

3" AM Safe

1шт.

2

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

2шт.

3

87310149

BRACKET

1шт.

4

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

2шт.

5

87311572

SPACER,12.7mm x 19mm x 9mm

2шт.

Выбрано товаров: 5
