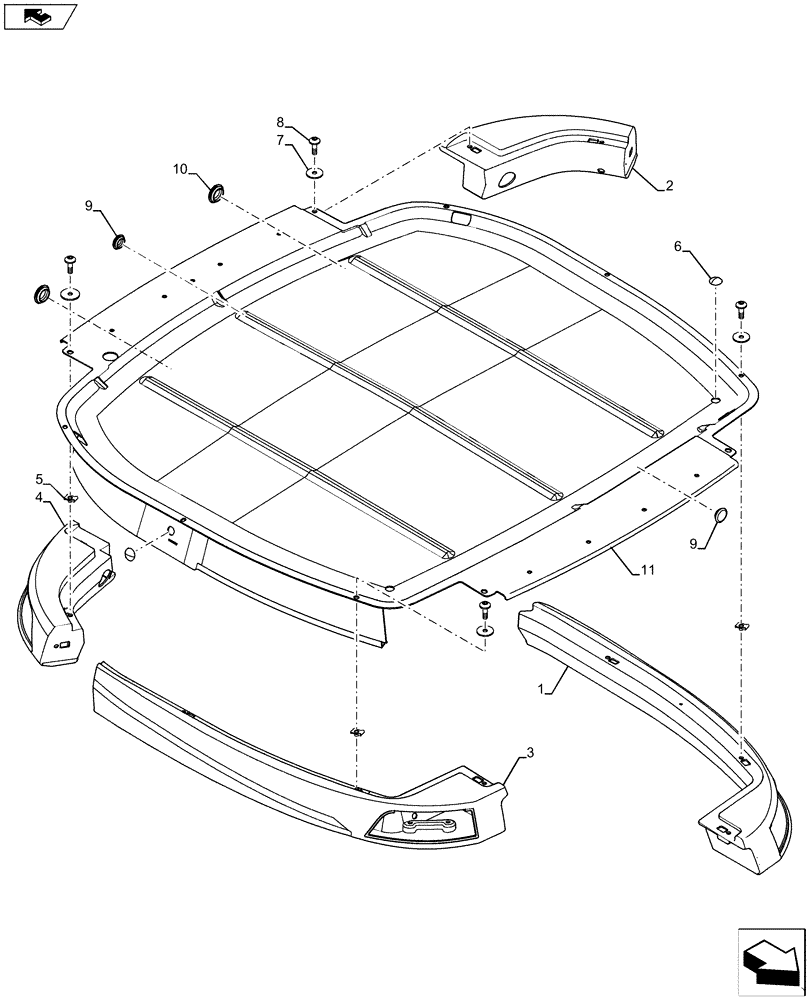

Запчасти Case 580SN WT (90.150.04) - VAR - 747853, 747854, 747855 - CAB ROOF LIGHT PODS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84327783

HOUSING

LH Front

1шт.

2

84327782

HOUSING

LH Rear

1шт.

3

84327784

HOUSING

RH Front

1шт.

4

84327785

HOUSING

RH Rear

1шт.

5

833-40406

NUT,M6, U

14шт.

6

395388A1

PLUG

Liquid Tight

3шт.

7

395387A1

SEALING WASHER,6.4mm ID x 22.3mm OD x 1.6mm Thk

14шт.

8

84270430

SCREW,Torx, Truss HD, M6 x 1 x 20mm

14шт.

9

14507887

PLUG,25mm ID, 39mm OD

M30

2шт.

10

14508087

PLUG,40mm ID

M40

2шт.

11

NSS

NOT SOLD SEPARAT

Roof Plate, Incl in CAB Assembly

1шт.

See Figures 90.150.05 and 90.150.06

1шт.
