(90.120.11) - VAR - 423081 - TOOL BOX - RETRO FIT KIT (HYDRAULIC COUPLER)

Запчасти Case 580SN WT (90.120.11) - VAR - 423081 - TOOL BOX - RETRO FIT KIT (HYDRAULIC COUPLER) (90) - PLATFORM, CAB, BODYWORK AND DECALS

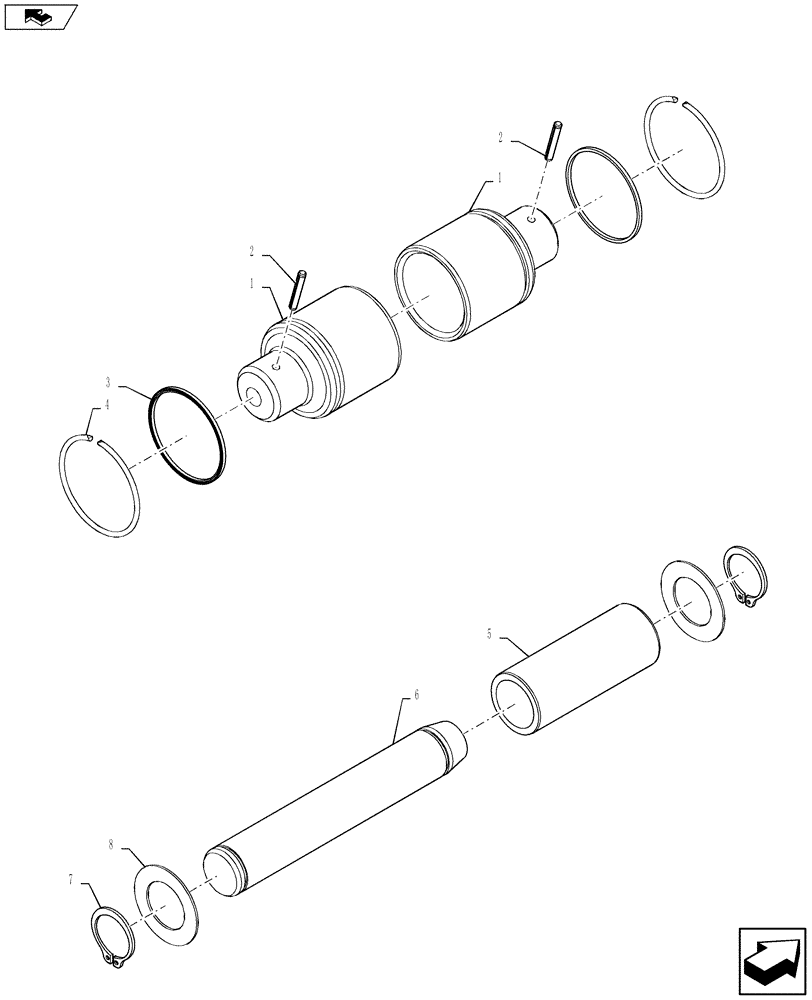

Схема запчастей Case 580SN WT - (90.120.11) - VAR - 423081 - TOOL BOX - RETRO FIT KIT (HYDRAULIC COUPLER) (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
8
2
7
5
1
home
6
2
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

400932A4

PIN,76.2mm OD x 114.5mm L

2шт.

2

135-1233

GROOVED PIN,5.56mm OD x 38.1mm L

2шт.

3

434891A1

WIPER SEAL

2шт.

4

406624A1

RING,81.38mm OD, Ext

2шт.

5

84300835

SLEEVE,38.3mm ID x 50mm OD x 125mm L

1шт.

6

D37614

PIN,38mm Od x 246mm L

1шт.

7

D25279

SNAP RING,M35, Int

2шт.

8

D143324

WASHER,38.15mm ID x 64mm OD x 1.7mm Thk

2шт.

Выбрано товаров: 8
