(90.120.0501[02]) - VAR - 747770 - SEAT - MECHANICAL SUSPENSION - C9007

Запчасти Case 580SN WT (90.120.0501[02]) - VAR - 747770 - SEAT - MECHANICAL SUSPENSION - C9007 (90) - PLATFORM, CAB, BODYWORK AND DECALS

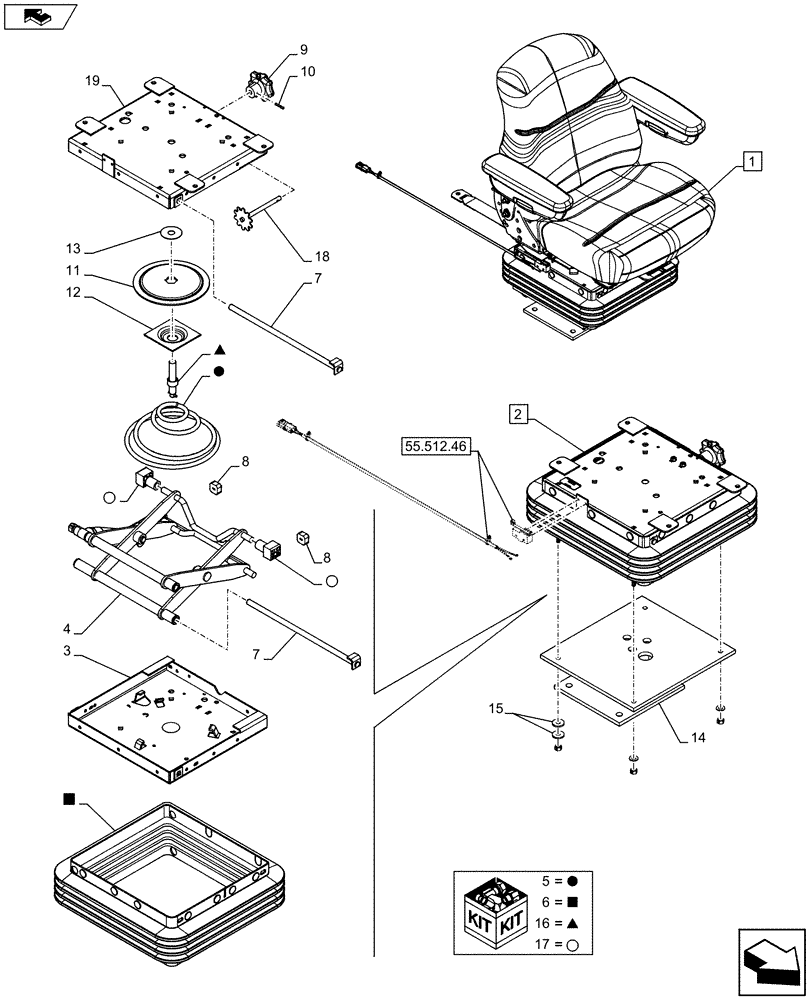

Схема запчастей Case 580SN WT - (90.120.0501[02]) - VAR - 747770 - SEAT - MECHANICAL SUSPENSION - C9007 (90) - PLATFORM, CAB, BODYWORK AND DECALS
55.512.46
6
7
17
10
8
1
5
13
4
17
6
16
18
14
16
17
6
12
5
2
15
9
3
8
17
7
5
11
16
home
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84276094

DRIVER SEAT

Assy, Incl 2 - 19

1шт.

2

87308141

SEAT SUPPORT

1шт.

3

87308142

SEAT SUPPORT

Not Shown

1шт.

4

87308144

SEAT SUPPORT

1шт.

5

87308146

SEAT ACCESSORY

1шт.

6

87308147

SEAT ACCESSORY

1шт.

7

112884A1

SHAFT,368mm L

2шт.

8

A45054

BUMPER,Neoprene

2шт.

9

123969A1

SEAT ACCESSORY

Assy, Incl 10

1шт.

10

38-11016

LOCK PIN,5/32" x 1", Slotted

1шт.

11

A45505

GEAR

1шт.

12

A45504

SPRING WASHER

1шт.

13

87308145

THRUST WASHER

1шт.

14

87555125

PEDESTAL

1шт.

15

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

4шт.

16

87308148

SEAT ACCESSORY

1шт.

17

1977725C1

SLIDER

1шт.

18

A45513

GEAR

Not Shown

1шт.

19

87308143

SEAT SUPPORT

Not Shown

1шт.
